MOLEX 2153411124 Power Connector

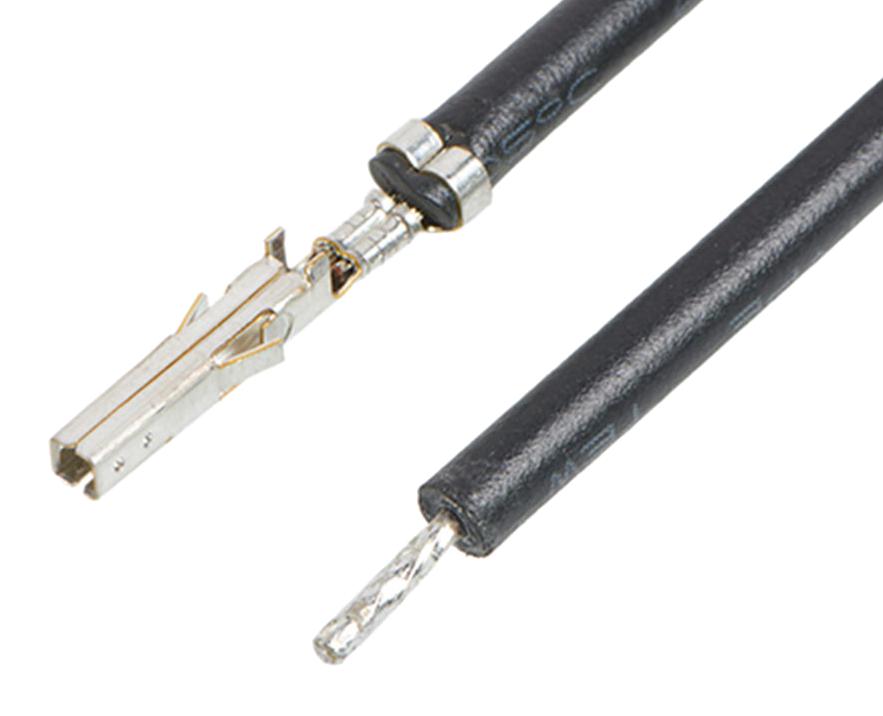

The Mini-Fit Jr. female-to-pigtail pre-crimped leads are designed for power connections in electronic assemblies. Featuring a 300mm length with tin plating for reliable contact, these wires are suitable for wire sizes up to 16 AWG. These off-the-shelf pre-crimped leads offer quick and easy connection with a male to female interface, ensuring secure and efficient electrical connectivity. They are ideal for power, wire-to-wire, and wire-to-board applications, supporting current up to 9A and voltage up to 600V, and are RoHS compliant for environmental safety.
MOLEX 2153411124 Power Connector Specifications:
- Cable Length: 300.00mm
- Circuits (Loaded): 1
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Packaging Type: Bag
- Application: Power, Wire-to-Board, Wire-to-Wire
- Connector Type: Mini-Fit Jr.
- RoHS Compliance: Yes
- Halogen-Free: No
- Status: Active
Buy the Molex 2153411124 – Reliable Power Connector for Industrial Applications
Purchase the Molex 2153411124 Mini-Fit Jr. female-to-pigtail pre-crimped leads online today. With a 300mm length, tin plating, and 16 AWG wire size, these connectors ensure secure and reliable power connections. Designed for power, wire-to-wire, and wire-to-board applications, they support up to 9A current and 600V voltage. RoHS compliant and easy to install, these flexible, off-the-shelf leads are ideal for industrial, electronic, and power equipment, providing durability and efficiency for your projects.
Order your Molex Series2153411124 power leads today and ensure robust, efficient connections in your industrial projects with trusted quality.
Frequently Asked Questions
Where can I buy MOLEX 2153411124?
You can click on the BUY or RFQ button to purchase 2153411124 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153411124?
You can download the 2153411124 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153411124?
MOLEX
