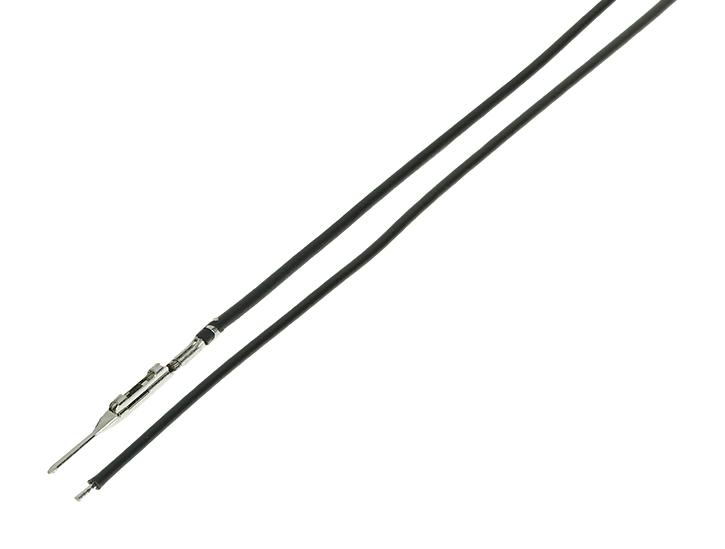

MOLEX 2177931103 Pre-crimped Lead Assembly
Molex's 217793 series pre-crimped lead offers a reliable, cost-effective solution for prototyping, preproduction, and mass production applications. It features a 1.8mm pitch male connector made from copper alloy with tin-plated contacts for excellent electrical performance. The assembly is insulated with durable black PVC resin and supports 24 AWG wire. Rated for up to 6A current and 125V voltage, it includes a locking mechanism to ensure secure connections and is compatible with UL 10002 cable types, making it ideal for various electronic and industrial uses.
MOLEX 2177931103 Pre-crimped Lead Assembly Specifications:
- Pitch: 1.8mm
- Connector Type: Male-to-Pigtail
- Wire Size: 24 AWG
- Voltage Rating: 125V
- Current Rating: 6A
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Insulation Material: PVC
- Cable Length: 225.00mm
- Color - Resin: Black
- Locking Mechanism: Yes
- Termination Style: Crimp or Compression
- Compliance: UL 10002, RoHS, China RoHS, REACH SVHC Not Contained
- Net Weight: 0.657g
- Packaging: Bag
Buy the Buy Molex Cable Assembly Part Number 2177931103 Online
Purchase the Molex 217793 series pre-crimped lead assembly online for fast, reliable, and cost-effective prototyping and production. Featuring a 1.8mm pitch male connector made of copper alloy with tin-plated contacts, it provides excellent electrical performance and durability. The assembly supports 24 AWG wire, rated for 6A and 125V, with a secure locking feature to ensure stable connections. Insulated with black PVC resin, this versatile cable is compatible with UL 10002 standards, ideal for industrial and electronic applications.
Buy Molex 2177931103 now and experience unmatched reliability and performance with secure male-to-pigtail connections for your electronics projects.
Frequently Asked Questions
Where can I buy MOLEX 2177931103?
You can click on the BUY or RFQ button to purchase 2177931103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2177931103?
You can download the 2177931103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2177931103?
MOLEX
