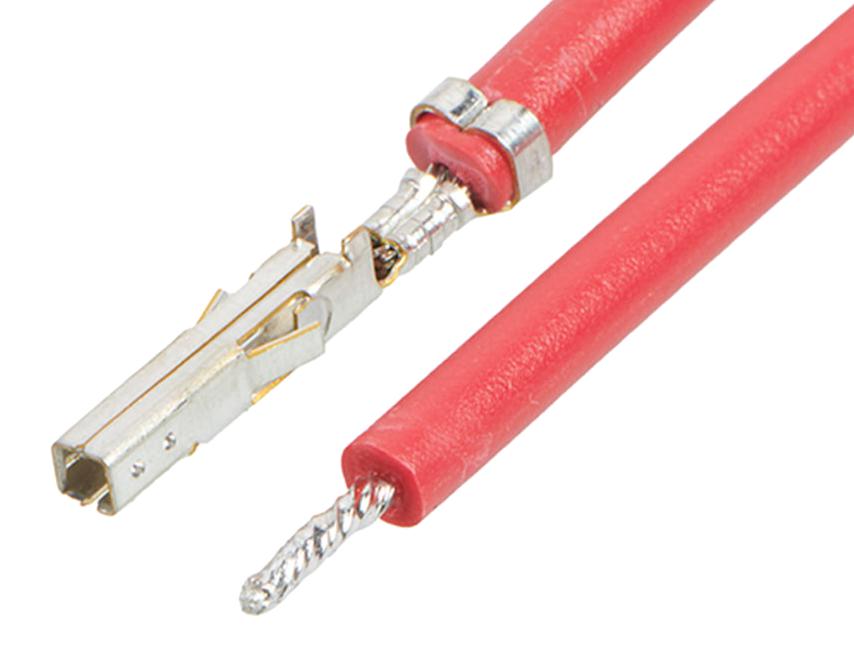

MOLEX 2153412102 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215341-2102 is a pre-crimped lead assembly designed for reliable power connections in various applications. This assembly combines a Mini-Fit Jr. female connector with a pigtail, offering a convenient and ready-to-use solution for wire-to-board and wire-to-wire connections. The tin plating ensures excellent conductivity and corrosion resistance, while the red resin color provides easy identification. It is ideal for applications requiring a secure and efficient power transfer.
MOLEX 2153412102 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215341
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: Mini-Fit Jr.-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 2.139/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 20
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264559602
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per D(2020)4578-DC
- china_roh: Green Image
- halogen_free: Yes
- low_halogen: Not Low-Halogen
