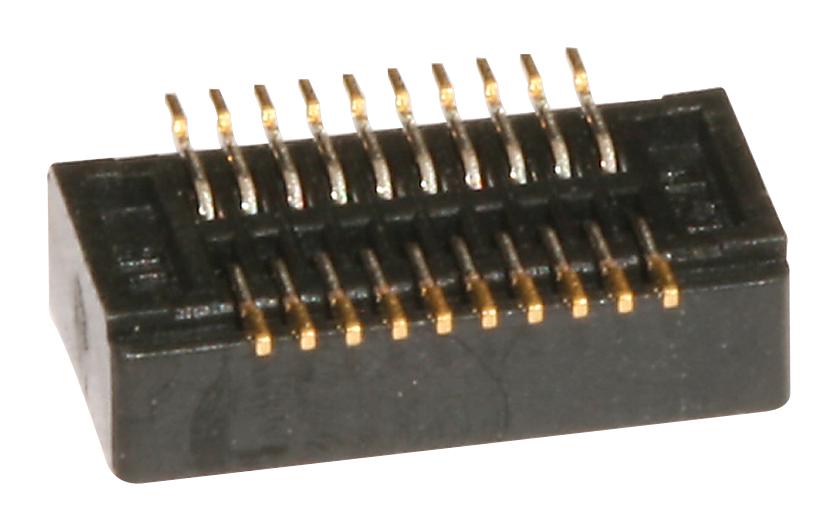

MOLEX 547220504 SlimStack Board-to-Board Connector
The MOLEX 54722-0504 SlimStack connector is a compact and reliable board-to-board connection solution designed for surface mount applications. With a 0.50mm pitch, it offers a space-saving design suitable for densely populated circuit boards. This connector features 50 circuits, a dual-row configuration, and a vertical orientation, making it ideal for connecting PCBs in various electronic devices. The gold plating with a nickel barrier provides excellent conductivity and durability, ensuring a long-lasting and dependable connection.
MOLEX 547220504 SlimStack Board-to-Board Connector Specifications:
- overview: SlimStack™ 0.50mm Pitch Board-to-Board Connectors
- description: 0.50mm Pitch SlimStack Receptacle, Surface Mount, Dual Row, Vertical, 1.50mm Stacking Height, Lower Circuit Size Version, 50 Circuits, Gold Plating with Nickel Barrier Plating Between Contact and Tail
- series: 54722
- application: Board-to-Board, Signal
- embossed_tape_reel_height: 380.00mm
- circuits_loaded: 50
- circuits_maximum: 50
- color_resin: Black
- durability_mating_cycles_max: 30
- glow_wire_capable: No
- lock_to_mating_part: None
- mated_height: 1.50mm
- mated_width: 6.00mm
- material_metal: Phosphor Bronze
- material_plating: Gold
- material_termination: Gold
- material_resin: High Temperature Thermoplastic
- net_weight: 149.401/mg
- number_of_rows: 2
- orientation: Vertical
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended: 1.60mm
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 0.50mm
- polarized_to_pcb: No
- surface_mount_compatible: Yes
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 0.5A
- voltage_maximum: 50V
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
