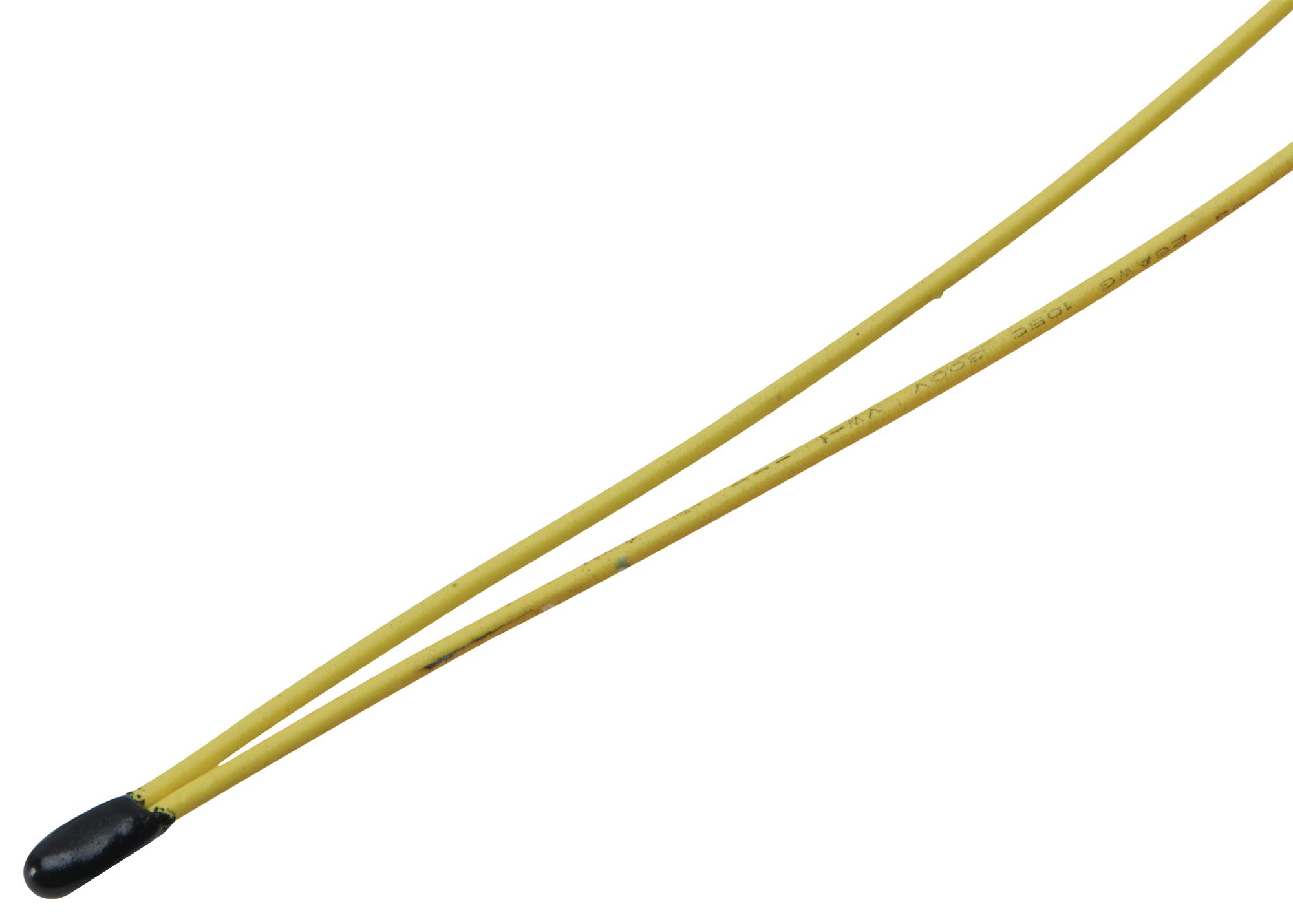

MOLEX 2152721605 NTC Temperature Sensor Cable
The MOLEX 2152721605 is a temperature sensor cable assembly designed for applications requiring precise temperature monitoring. This cable features an epoxy-coated NTC thermistor, providing reliable and accurate temperature readings. With a length of 40mm and a resistance of 10k ohms at 25°C, it's suitable for various industrial and commercial uses. The cable is RoHS compliant and features a single-ended configuration, making it easy to integrate into existing systems.
MOLEX 2152721605 NTC Temperature Sensor Cable Specifications:
- overview: Temperature Sensor Cable Assemblies
- description: Epoxy Coated NTC Thermistor Cables
- cable_length: 40.00mm
- beta_value: 3982
- resistance_at_25c: 10k#
- resistance_tolerance: ±0.1°C(±0.44%)
- color_resin: Yellow
- circuits_loaded: 1
- gender: N/A
- lock_to_mating_part: Yes
- net_weight: 0.150/g
- packaging_type: Bag Single Ended
- wire_size_awg: 28
- upc: 193264680894
- series: 215272
- elv: Not Relevant
- rohs: Compliant with Exemption 15(a)
- reach_svhc: lead
- halogen_free_status: Not Reviewed
