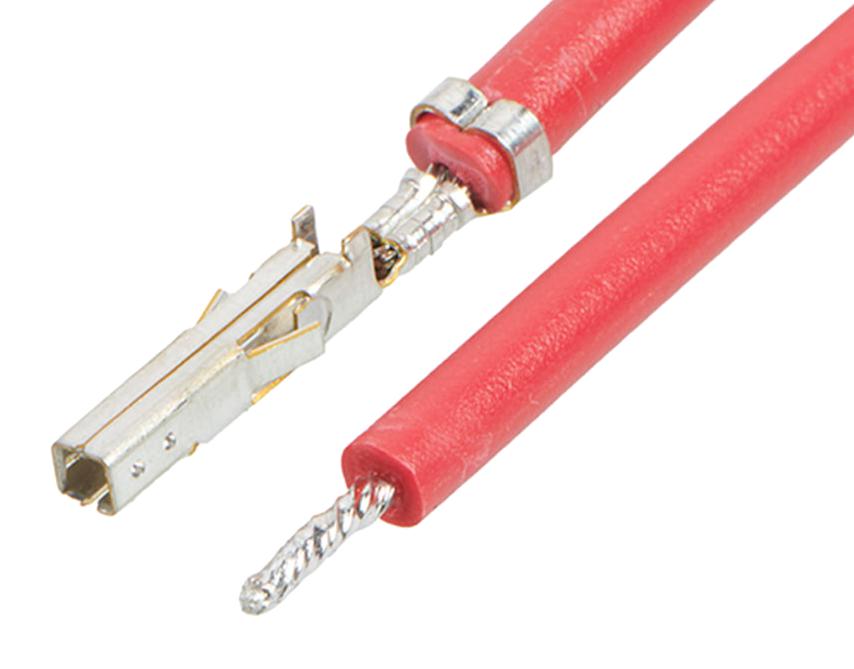

MOLEX 2153412104 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-2104 is a pre-crimped lead cable assembly designed for versatile applications including power distribution, wire-to-board connections, and wire-to-wire linking. This assembly features a Mini-Fit Jr. female connector transitioning to a pigtail, ensuring a secure and reliable connection. The tin plating on both mating and termination surfaces enhances conductivity and corrosion resistance. With a 300mm length and 20 AWG wire gauge, it provides flexibility and adequate current carrying capacity for various industrial and commercial uses. It is RoHS compliant and suitable for applications requiring a pre-terminated solution.
MOLEX 2153412104 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 3.866/g
- packaging_type: Bag
- end_type: Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 20
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264559626
- sales_drawing: 2153411101-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_rohs: Not Contained Per D(2020)4578-DC
- halogen_free: Yes
- low_halogen: Not Low-Halogen
- use_with_housing: 5557, 44516, 42474, 43760
