MOLEX 39306047 Power Connector
The Mini-Fit Jr. Power Connector is a versatile, tabulated 4-circuit vertical header with a 4.20mm pitch, designed for power applications and wire-to-board connections. Made from durable nylon with tin-plated brass contacts, it supports up to 9A current per contact and a maximum voltage of 600V. Featuring a 2-row, shrouded, fully polarized design, it offers reliable mating with a mating cycle durability of 30. Suitable for operating temperatures from -40°C to +105°C, it is ideal for high-density power distribution in electronic and industrial equipment.
MOLEX 39306047 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 4
- Color - Resin: Natural
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Durability (mating cycles max): 30
- Flammability: 94V-2
- Temperature Range: -40°C to +105°C
- Current per contact: 9.0A
- Voltage maximum: 600V
- PC Tail Length: 3.50mm
- PCB Thickness - Recommended: 1.60mm
- Surface Mount Compatible (SMC): No
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Guide to Mating Part: None
- Stackable: No
- Packaging Type: Tray

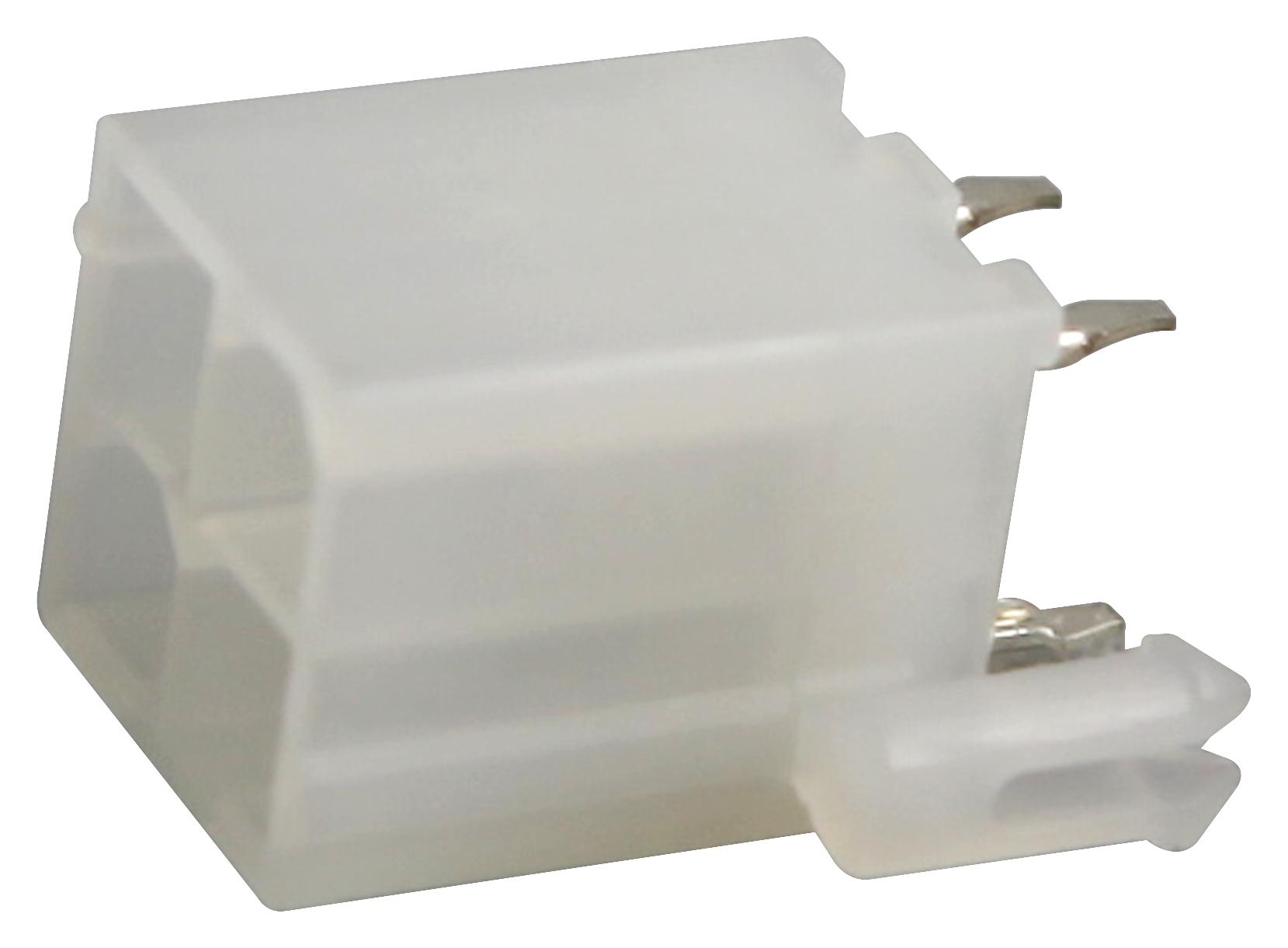

Buy the Buy Molex Mini-Fit Jr. Part Number 0039306047 Online
Purchase Molex Mini-Fit Jr. power connectors online for reliable, high-performance wire-to-board power distribution. Featuring 4 circuits, 4.20mm pitch, and rated for 9A at 600V, these durable nylon housings with tin-plated brass contacts ensure secure and long-lasting connections. Designed for up to 30 mating cycles, they are suitable for high-temperature environments from -40°C to +105°C, making them ideal for industrial, power supply, and electronic applications that demand safety, efficiency, and durability.
Buy Molex Mini-Fit Jr. 0039306047 now and experience high-reliability power connections with a 4-circuit, 4.20mm pitch vertical header for electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 39306047?
You can click on the BUY or RFQ button to purchase 39306047 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39306047?
You can download the 39306047 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39306047?
MOLEX
