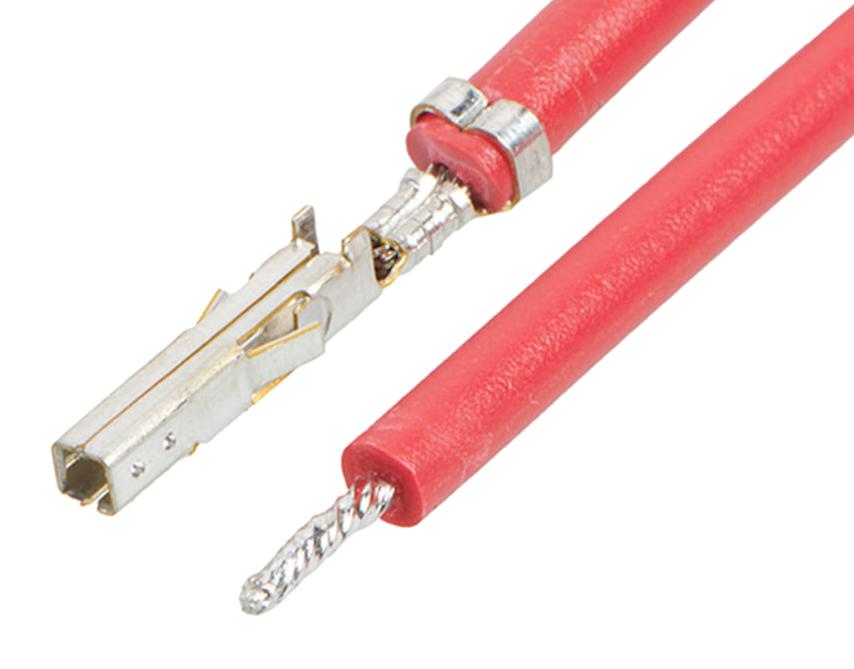

MOLEX 2153412125 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-2125 is a pre-crimped lead cable assembly designed for versatile applications including power distribution, wire-to-board connections, and wire-to-wire linking. It utilizes a Mini-Fit Jr. female connector transitioning to a pigtail, ensuring ease of integration. The tin plating on both mating and termination surfaces provides excellent conductivity and corrosion resistance. This cable assembly is ideal for industrial equipment, automotive systems, and other applications requiring robust and reliable power connections.
MOLEX 2153412125 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215341
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 10.114/g
- packaging_type: Bag
- end_termination: Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- elv_compliance: Not Relevant
- rohs_status: Compliant
- reach_svhc_status: Not Contained
- halogen_free: Yes
- low_halogen_status: Not Low-Halogen
- upc: 193264559732
- use_with_housing: 5557, 44516, 42474, 43760
