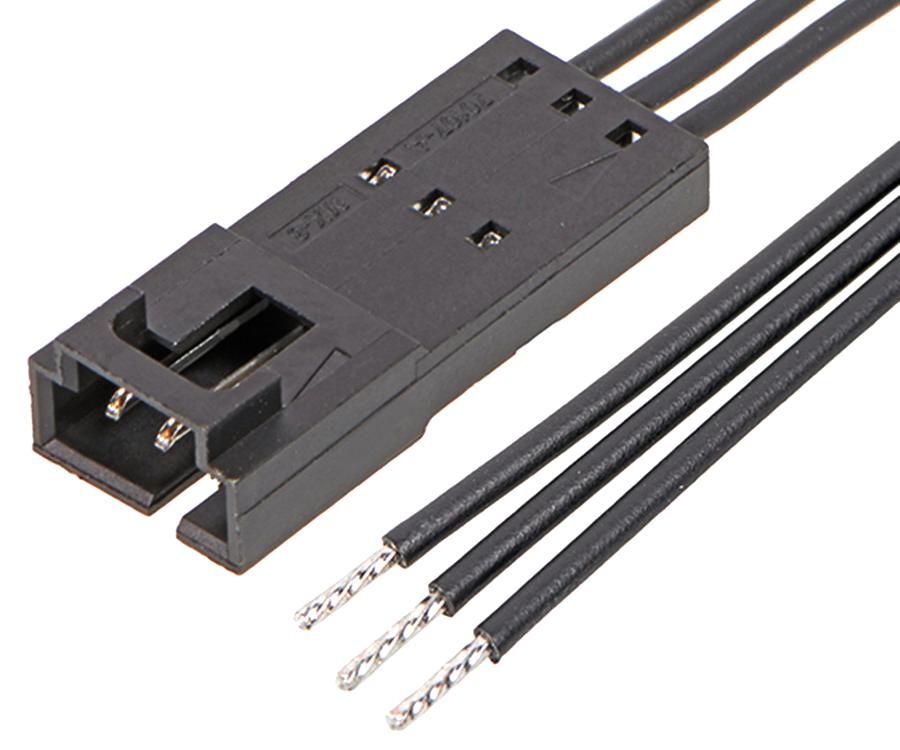

MOLEX 2162731034 Signal Cable Assembly
This off-the-shelf linear (SL) positive lock cable assembly supports prototyping and mass production across various sectors including industrial, automotive, and telecommunications. Features include a male-to-pigtail configuration with a 600mm length, dual contact points for reliable electrical performance, and a connector lock for high-vibration environments. Constructed from polyester alloy with phosphor bronze contacts, it supports up to 3A and 600V, operating from -40°C to +105°C. Suitable for secure, versatile connections in diverse applications, meeting UL and CSA standards for durability and safety.
MOLEX 2162731034 Signal Cable Assembly Specifications:
- Cable Length: 600.00mm
- Number of Circuits: 3
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Electrical Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 25 mating cycles
- Construction Features: Positive lock, dual contact points, connector position assurance (CPA), stackable housing
- Compliance: UL, CSA, RoHS, China RoHS
- Connector Type: Discrete Wire Assembly
- Housing Material: Polyester Alloy
Buy the Buy Molex Signal Wire-to-Wire Part Number 2162731034 Online
Enhance your electronic projects with Molex signal cable assemblies designed for durability and secure connections. Featuring a 600mm length, positive lock, and dual contact points, these assemblies ensure reliable performance across industrial, automotive, and telecommunications applications. Made with high-quality phosphor bronze contacts, tin plating, and a rugged polyester alloy housing, they support up to 3A and 600V. Easy to install with stackable, low-profile design, these assemblies meet UL and CSA standards for safety and durability—perfect for prototyping or mass production needs.
Order your Molex Series216273 cable assembly with 600mm length, positive lock, and high-vibration reliability today and enhance your project's connection integrity.
Frequently Asked Questions
Where can I buy MOLEX 2162731034?
You can click on the BUY or RFQ button to purchase 2162731034 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162731034?
You can download the 2162731034 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162731034?
MOLEX
