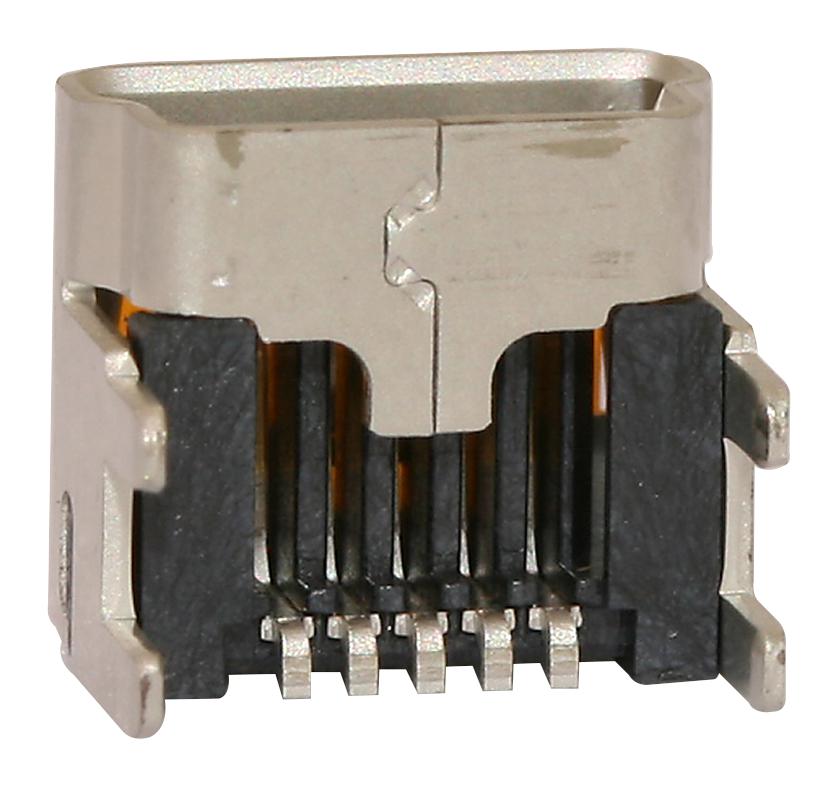

MOLEX 513870578 USB B Receptacle
The Mini USB B-Receptacle is a surface-mount, right-angle connector designed for wire-to-board applications. This lead-free, shielded, and RoHS-compliant connector supports USB 2.0 and OTG specifications. It features short body design with surface mount solder tails and through-hole shell tabs, ensuring stable connectivity and ease of assembly. Made from high-performance alloy and thermoplastic, it withstands operating temperatures from 0°C to +50°C. Suitable for compact electronic devices requiring reliable USB connections, it offers excellent durability and polarization for proper mating.
MOLEX 513870578 USB B Receptacle Specifications:
- Component Type: Receptacle
- Series: 51387 EU ELV
- Application: Wire-to-Board
- Gender: Female
- Number of Circuits: 5
- Shield Type: Full Shield
- Color - Resin: Black Low-Halogen
- Material - Metal: High Performance Alloy (HPA), Phosphor Bronze
- Material - Resin: High Temperature Thermoplastic
- Plating - Mating: Gold
- Plating - Termination: Tin
- Max. Current per Contact: 1.0A
- Voltage - Max: 30V AC (RMS)/DC
- Process Temperature Max: 250°C
- Operating Temperature Range: 0°C to +50°C
- Surface Mount Compatibility: Yes
- PCB Locator & Retention: Yes
- Pitch - Mating Interface: 0.80mm
- Durability: Up to 001 Max. Cycles at Max. Process Temperature
- RoHS: Yes, Lead-Free
- Certifications: RoHS, China RoHS
- Package: Tape on Reel
Buy the Molex Series 51387 USB B Receptacle: 513870578
Secure your electronic assemblies with this high-quality USB B Receptacle. Designed for surface mounting, it offers shielded contact reliability, RoHS compliance, and a compact right-angle form. Perfect for high-speed data transfer applications, the connector supports USB 2.0 and OTG specifications, with a robust construction made from high-performance alloy and thermoplastic. Its easy-to-use tape-on-reel packaging simplifies assembly, making it ideal for manufacturing and repair jobs. Guarantee dependable performance in your devices by purchasing this versatile and durable USB connector online today.
Order your Molex Series 51387 USB B Receptacle today and ensure reliable, high-quality USB connections for your electronics projects.
Frequently Asked Questions
Where can I buy MOLEX 513870578?
You can click on the BUY or RFQ button to purchase 513870578 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 513870578?
You can download the 513870578 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 513870578?
MOLEX
