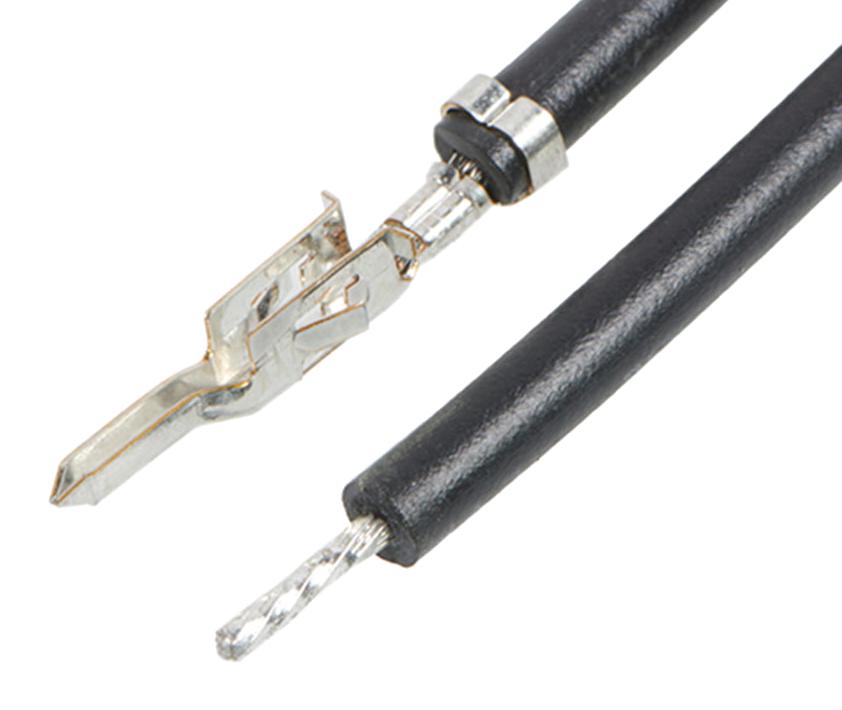

MOLEX 2153431114 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215343-1114 is an off-the-shelf pre-crimped lead assembly designed for power and wire-to-wire applications. This assembly combines a Mini-Fit Jr. male connector with a pigtail termination, providing a pre-terminated solution that simplifies integration. The tin plating on both mating and termination surfaces ensures excellent conductivity and corrosion resistance. Suitable for applications requiring a robust and reliable power connection, this lead assembly is ideal for various industrial and commercial settings.
MOLEX 2153431114 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 5.057/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 18
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560172
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)4578-DC
- halogen_free_status: Not Low-Halogen
- use_with_housing: Mini-Fit Jr. Plug Housing 5559, Mini-Fit BMI Plug Housing 42475
