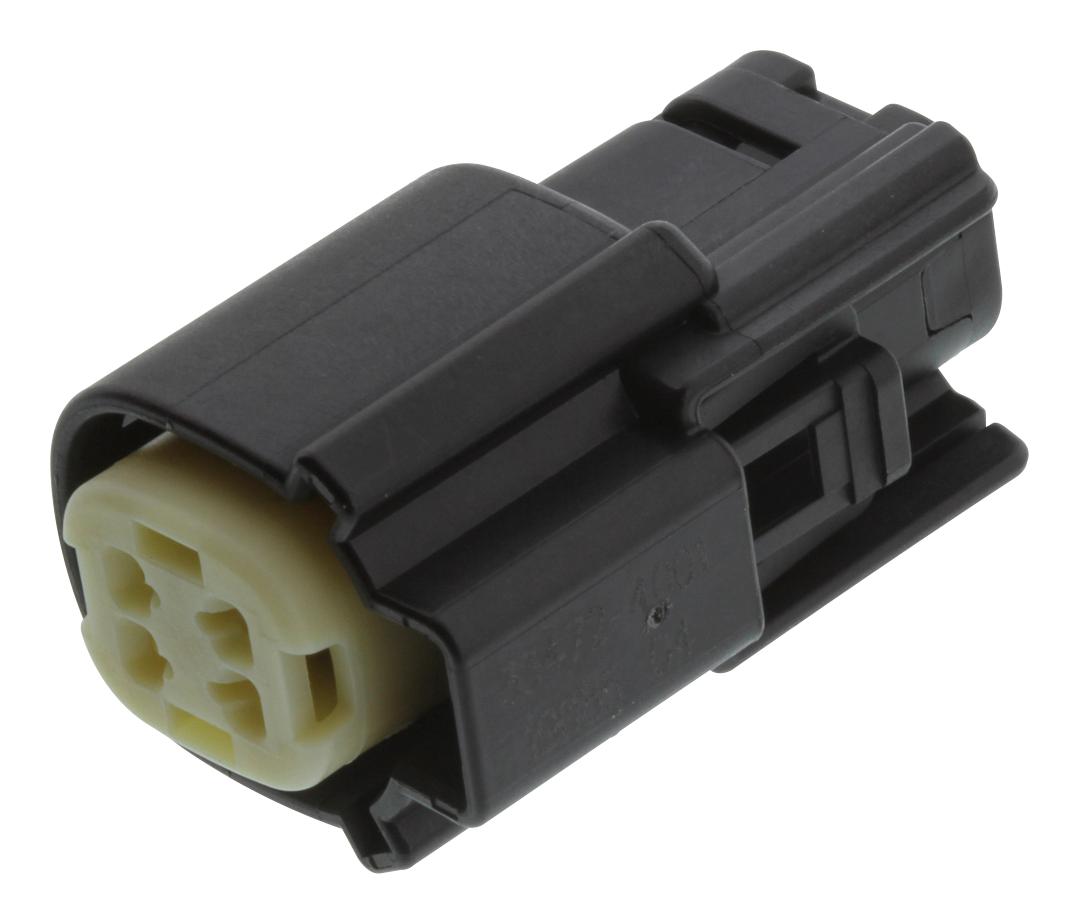

MOLEX 334724001 MX150 Sealed Connector
The MOLEX 33472-4001 is a robust sealed female connector within the MX150 series, ideal for demanding applications requiring a secure and reliable connection. This connector boasts 4 circuits, a polarization A design, and a black finish. Constructed from SPS/Nylon, it offers excellent durability and resistance to environmental factors. It is commonly used in power, wire-to-board, and wire-to-wire configurations, making it suitable for automotive, industrial, and consumer electronics applications. The connector is designed without Connector Position Assurance (CPA) and is stackable.
MOLEX 334724001 MX150 Sealed Connector Specifications:
- Product Family: Crimp Housings
- Series: 33472
- Application: Power, Wire-to-Board, Wire-to-Wire
- Circuits (maximum): 4
- Color - Resin: Black
- Gender: Receptacle
- Glow-Wire Capable: No
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: SPS/Nylon
- Net Weight: 8.180/g
- Number of Rows: 2
- Packaging Type: Individual Cell Panel Mount
- Pitch - Mating Interface: 3.50mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +125°C
- EU ELV Compliant: Yes
- EU RoHS: Compliant
- China RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Mates With: MX150 Male Sealed Connector 33482
- Use With: MX150 Female Terminal 33012, 33001, MX150 Cavity Plug Sealed 343450001
