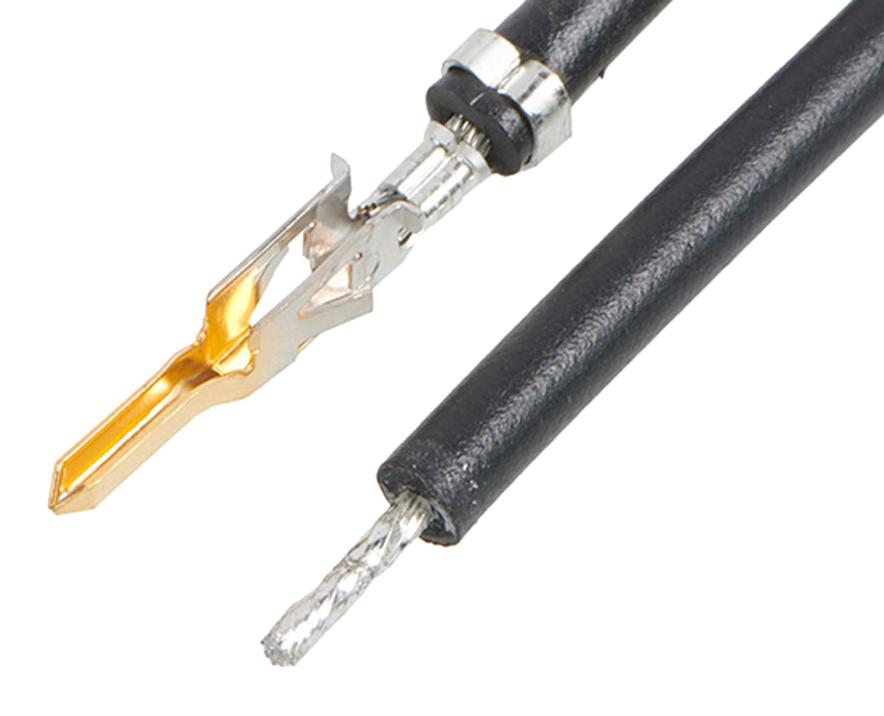

MOLEX 2153431205 Mini-Fit Jr. Male-to-Pigtail
The MOLEX 215343-1205 is a pre-crimped lead assembly designed for connecting power and facilitating wire-to-wire connections. This assembly features a Mini-Fit Jr. male connector on one end and a pigtail on the other, providing a convenient and reliable connection solution. The gold plating on the connector ensures excellent conductivity and corrosion resistance, making it suitable for demanding industrial environments. It is RoHS compliant and ideal for applications requiring a pre-terminated connection.
MOLEX 2153431205 Mini-Fit Jr. Male-to-Pigtail Specifications:
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_to_connector: Mini-Fit Jr.-to-Pigtail
- overview: Off-the-Shelf Pre-Crimped Leads
- product_name_short: Mini-Fit Jr.
- upc: 193264560288
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Black
- gender: Male-Pigtail
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Tin
- net_weight: 5.570/g
- packaging_type: Bag
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 20
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per - D(2020)4578-DC (25 June 2020)
- halogen_free_status: Not Low-Halogen
