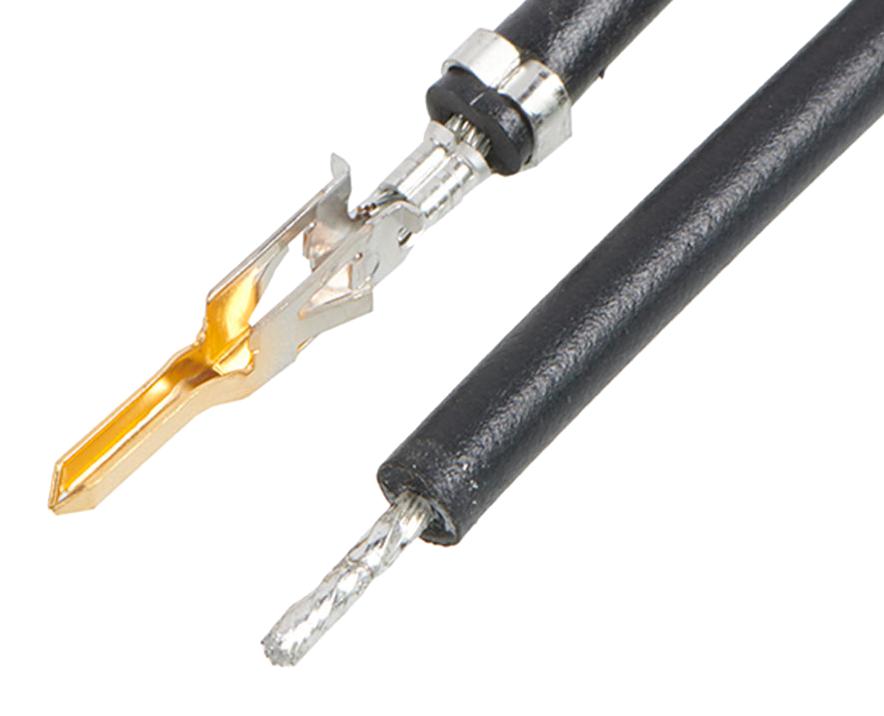

MOLEX 2153431221 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215343-1221 is a pre-crimped lead assembly designed for power and wire-to-wire applications. It combines a Mini-Fit Jr. male connector with a pigtail, providing a convenient and reliable connection solution. The gold plating on the mating interface ensures excellent conductivity and corrosion resistance, while the tin plating on the termination interface facilitates secure crimp connections. This assembly is ideal for various industrial and commercial applications where a pre-terminated connection is required.
MOLEX 2153431221 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 75.00mm
- circuits_loaded: 1
- color: Black (Resin)
- gender: Male-Pigtail
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- net_weight: 2.140/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560448
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)4578-DC
- halogen_free_status: Not Low-Halogen
