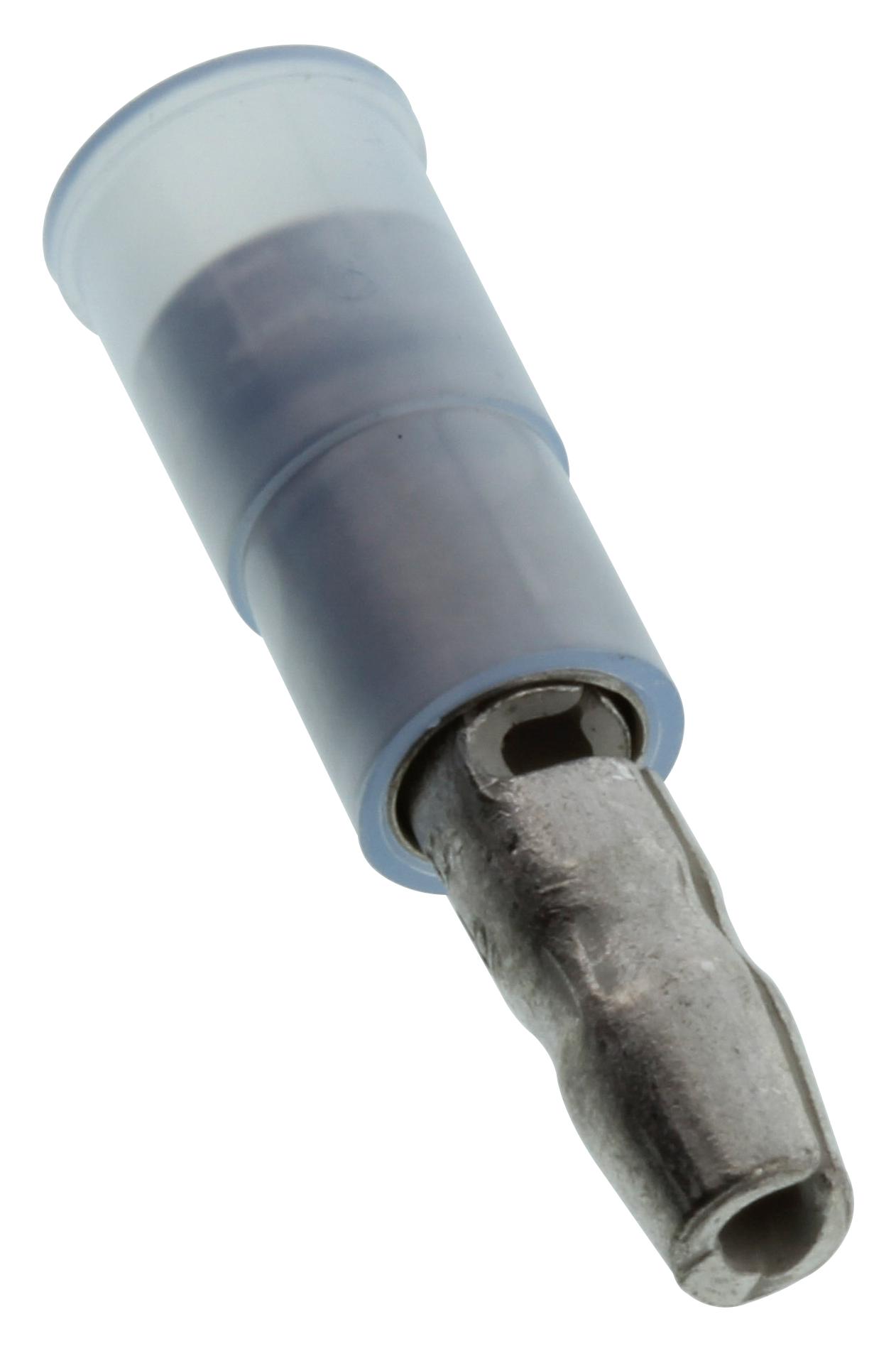

MOLEX 190350009 Avikrimp Snap Plug
The MOLEX 19035-0009 Avikrimp Snap Plug is a robust and reliable connector solution for applications requiring secure connections with 14-16 AWG wire. Constructed with molded nylon insulation and tin plating on both mating and termination surfaces, this snap plug ensures excellent conductivity and durability. Its closed barrel design and straight orientation make it suitable for a wide range of industrial and commercial applications, including power supplies, automation equipment, and consumer electronics. The connector's active lifecycle status indicates its continued availability and support from MOLEX.
MOLEX 190350009 Avikrimp Snap Plug Specifications:
- Status: Active
- Overview: Snap Plugs and Receptacles
- Description: Avikrimp Snap Plug, for 14-16 AWG Wire, Box, 22.55mm Length
- Product Family: Quick Disconnects
- Series: 19035
- Comments: Molded Nylon Insulation, Molded Nylon Insulation
- Insulated: Partial
- Product Name: Avikrimp
- Type: Snap Plug
- UPC: 800753047921
- Barrel Type: Closed
- Color - Resin: Blue
- Flammability: 94V-2
- Gender: Male
- Glow-Wire Capable: No
- Insulation: Nylon (PA)
- Lock to Mating Part: None
- Material - Metal: Copper
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 1.526/g
- Orientation: Straight
- Packaging Type: Bag
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.30-2.00
- Voltage - Maximum: N/A
- Lead-freeProcess Capability: N/A
- Engineering Number: B-589
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- RoHS Phthalates: Not Contained
- Application Tooling PremiumGrade Hand Crimp Tool: 640010100
- Application Tooling Crimp Head for AT-200 Pneumatic Hand Tool: 640050100
