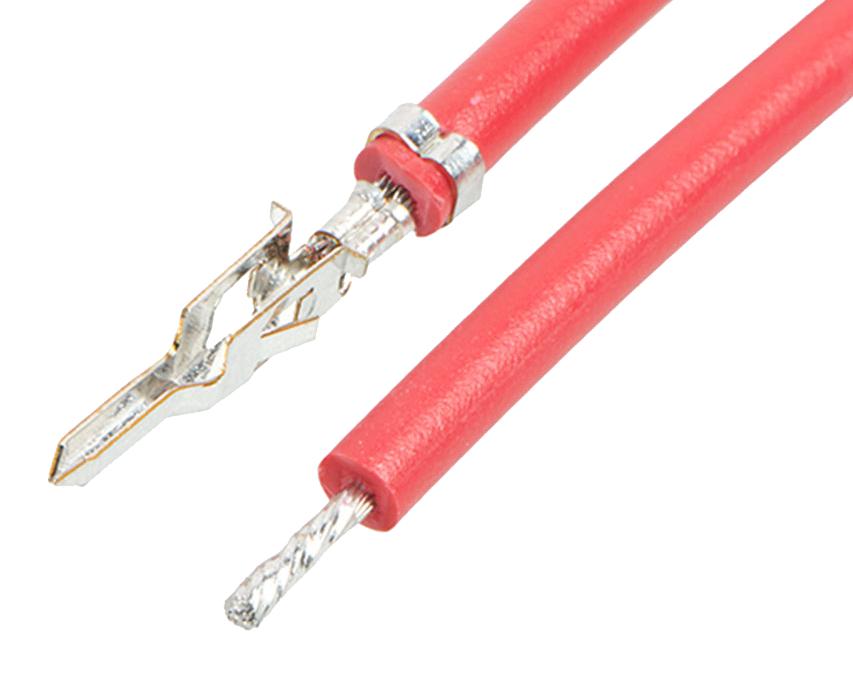

MOLEX 2153432102 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215343-2102 is an off-the-shelf pre-crimped lead assembly, ideal for power and wire-to-wire applications. It combines a Mini-Fit Jr. male connector with a pigtail termination, offering a convenient and reliable connection solution. The assembly features tin plating for enhanced conductivity and durability, and is available with a red resin color. It is designed for use with Mini-Fit Jr. plug housings, making it a versatile option for various industrial and commercial applications.
MOLEX 2153432102 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 2.080 g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 20
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- sales_drawing: 2153431101-000
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained
- halogen_free_status: Not Low-Halogen
