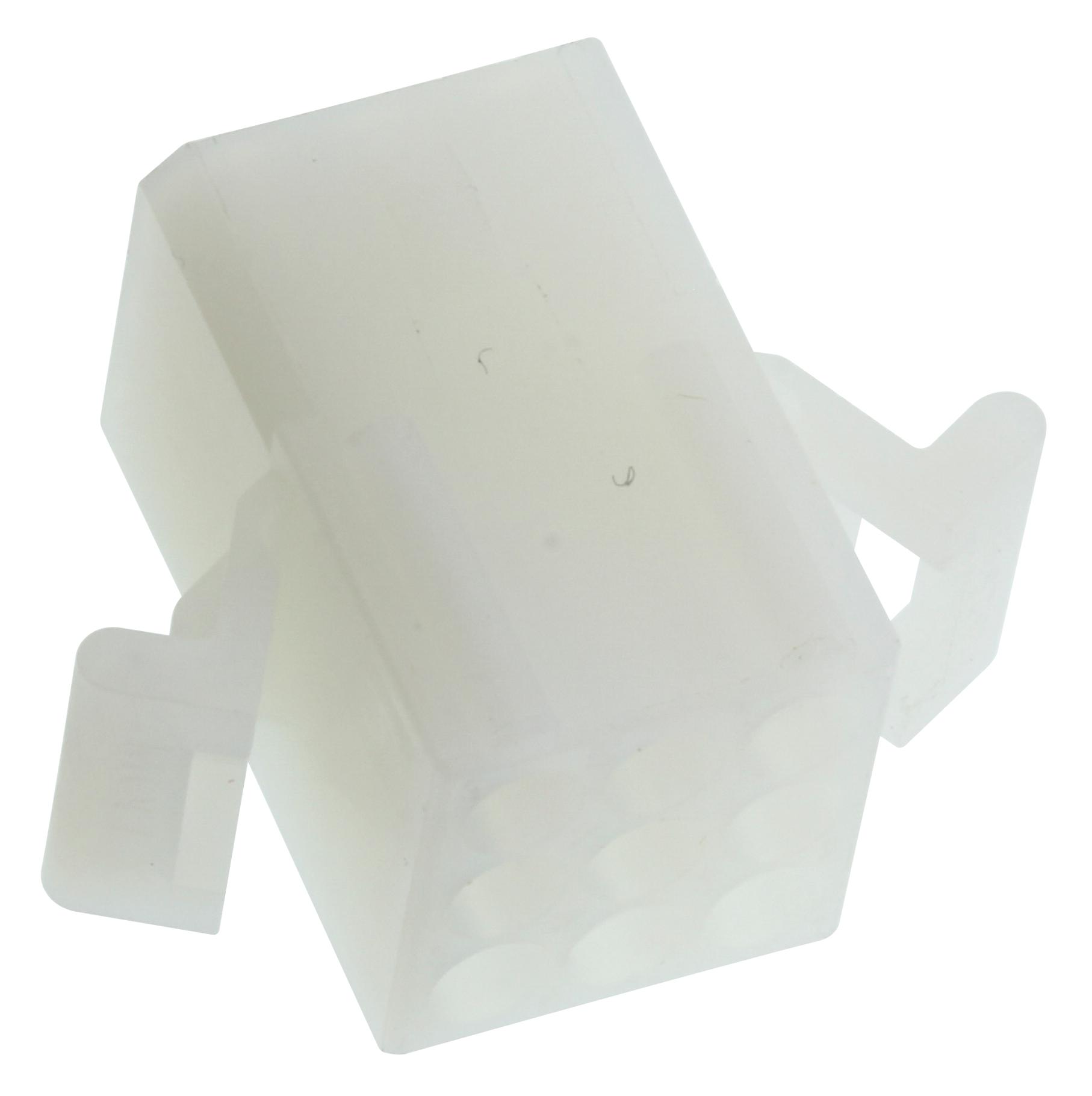

MOLEX 50361871 Standard .062 Pin Socket Connector
The MOLEX 50-36-1871 is a robust power connector within the 1625 series, designed for reliable wire-to-wire connections. It boasts 9 circuits and utilizes a nylon resin construction, ensuring durability and resistance to various environmental conditions. The connector's polarized design guarantees proper mating, while its pre-bent mounting ears simplify installation. Suitable for applications requiring a secure and stable power connection, this connector is commonly used in automotive, industrial equipment, and consumer electronics.
MOLEX 50361871 Standard .062 Pin Socket Connector Specifications:
- overview: Standard .062" Pin and Socket Power Connectors
- description: 1.57mm Diameter Standard .062" Pin and Socket Receptacle Housing, 9 Circuits, with Pre-bent Mounting Ears, Natural
- series: 1625
- application: Wire-to-Wire
- circuits_maximum: 9
- color_resin: Natural
- flammability: 94V-2
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 2.520
- number_of_rows: 3
- packaging_type: Bag
- panel_mount: Yes
- pitch_mating_interface_mm: 3.68
- pitch_termination_interface_mm: 3.68
- polarized_to_mating_part: Yes
- stackable: No
- operating_temperature_range_c: -40° to +105°
- current_maximum_per_contact_a: 5.0
- lead_free_process_capability: N/A
- engineering_number: 1625-9R4
- mates_with: 03062092
- use_with_female_crimp_terminals: 1561, 4559, 4529, 2190, 2189, 1787, 1855
- use_with_male_crimp_terminals: 1560, 1786, 1854, 1778
- use_with_male_pc_tail_terminals: 1779
- use_with_female_pc_tail_terminals: 1779
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
