MOLEX 2153432215 Power Lead Assembly

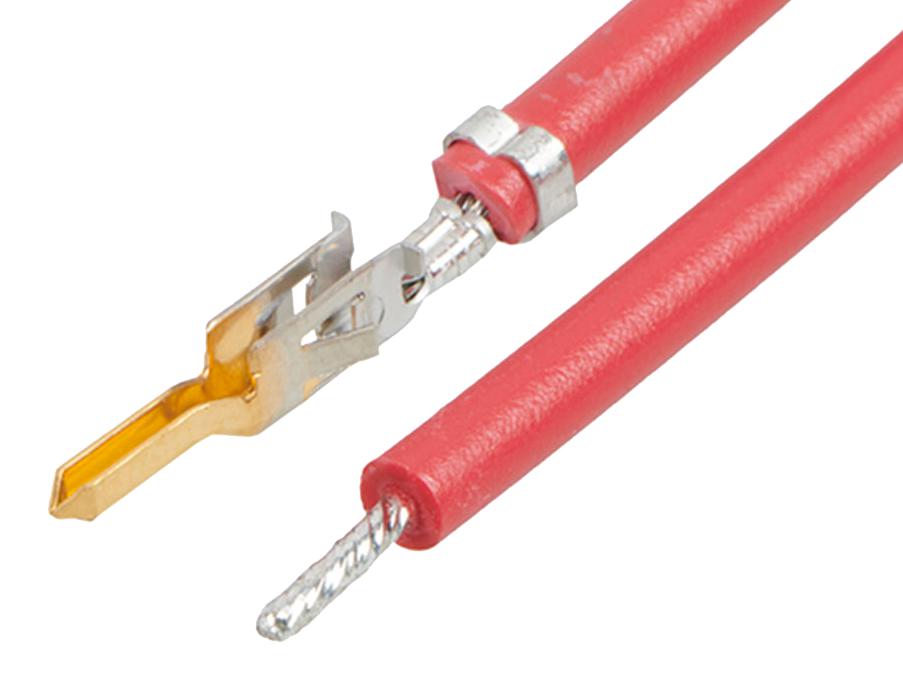

The Mini-Fit Jr. Male-to-Pigtail pre-crimped lead is a reliable connection component featuring gold plating for enhanced conductivity and corrosion resistance. It measures 450mm in length and is designed for 18 AWG wire, making it suitable for power applications. This off-the-shelf assembly provides a secure male-pigtail connection, ideal for wire-to-wire applications in electronic and electrical systems. Its durable brass material, tin plating, and UL 600V, 9A ratings ensure safety and high performance in demanding environments. The product is RoHS compliant and halogen-free, supporting environmentally conscious designs.
MOLEX 2153432215 Power Lead Assembly Specifications:
- Cable Length: 450.00 mm
- Wire Size: 18 AWG
- Wire Insulation Diameter: 1.80-3.10 mm
- Gender: Male-Pigtail
- Connector Type: Mini-Fit Jr.
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Color - Resin: Red
- Application: Power, Wire-to-Wire
- Termination Interface: Crimp or Compression
- Packaging: Bag
- Status: RoHS compliant, Halogen-Free: No
- Product Series: 215343
- RoHS: Compliant
- REACH SVHC: Not contained
- UL Rating: 600V, 9A
Buy the Buy Molex Mini-Fit Jr. Part Number 2153432215 Online
Purchase the Molex Mini-Fit Jr. power lead assembly online to ensure secure, efficient power connections for your electronic systems. With a length of 450mm and 18 AWG wire, this pre-crimped male-to-pigtail lead offers excellent conductivity with gold plating for corrosion resistance. Suitable for wire-to-wire assembly, it features durable brass construction, tin plating, and a maximum rating of 600V and 9A, making it ideal for power applications. RoHS compliant and halogen-free for environmentally friendly designs, order now for reliable performance.
Buy Molex 2153432215 now and experience unmatched reliability and high-performance power connections with gold-plated precision.
Frequently Asked Questions
Where can I buy MOLEX 2153432215?
You can click on the BUY or RFQ button to purchase 2153432215 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153432215?
You can download the 2153432215 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153432215?
MOLEX
