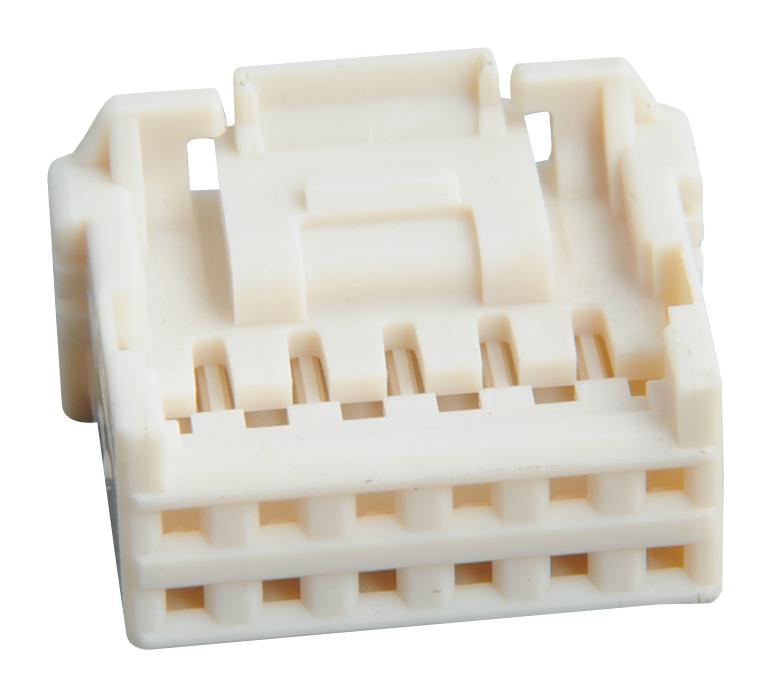

MOLEX 5016461600 iGrid Wire-to-Board Housing
The MOLEX 501646-1600 iGrid Wire-to-Board Housing is a robust solution for wire-to-board connectivity in various industrial applications. This dual-row housing, with a 2.00mm pitch, provides a secure and reliable connection for signal transmission. The positive lock feature ensures the housing remains firmly attached to the mating connector, preventing accidental disconnections. Designed for use with specific terminals (501647 and 501648), this housing is ideal for applications requiring a compact and durable wire-to-board interface.
MOLEX 5016461600 iGrid Wire-to-Board Housing Specifications:
- overview: iGrid Wire-to-Board Dual-Row System
- description: 2.00mm Pitch iGrid Wire-to-Board Housing, Dual Row, Positive Lock, 16 Circuits
- circuits_maximum: 16
- color_resin: Natural
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight: 510.000/mg
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating: -40° to +105°C
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
- upc: 822350087162
- series: 501646 Series
- mates_with_501645: Yes
- mates_with_503091: Yes
- mates_with_501876: Yes
- use_with_501647: Yes
- use_with_501648: Yes
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
