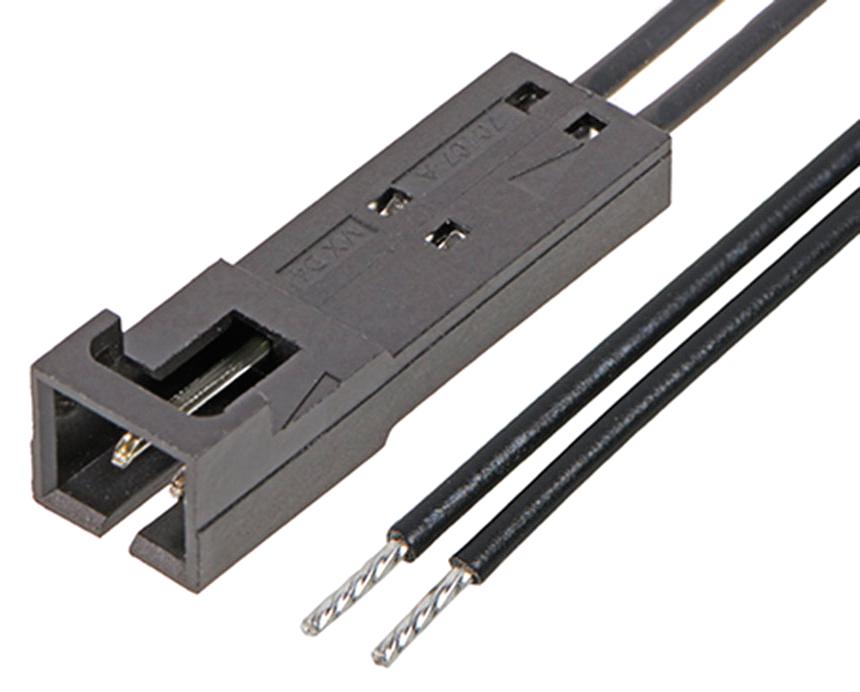

MOLEX 2162731020 Discrete Cable Assembly
The off-the-shelf stackable linear positive lock cable assembly is ideal for prototyping and large production runs. It features dual contact points for reliable electrical performance, a secure locking mechanism to prevent disconnection in high-vibration settings, and supports multiple termination styles including crimp, FFC, and IDT. Made with durable polyester alloy and phosphor bronze contacts with tin plating, it operates from -40°C to +105°C. Rated up to 600V AC/DC and 3A, it is suitable for consumer, industrial, automotive, medical, and communications applications, providing a flexible and secure connection solution.
MOLEX 2162731020 Discrete Cable Assembly Specifications:
- Cable Length: 50.00mm
- Number of Circuits: 2
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Electrical Rating: 3.0A, 600V AC/DC
- Temperature Range: -40°C to +105°C
- Durability: Up to 25 mating cycles
- Certifications: UL 11028, CSA LR19980
- Application: Signal, Wire-to-Wire, connector to connector
- Termination Style: Crimp or Compression
- Connectivity: Supports multiple termination styles and stackable housing
- Locking Mechanism: Positive lock, position assurance
- Housing: Polymer polyester alloy
- Design: Support for prototyping and large-scale production
- Compliance: RoHS, China RoHS, Halogen-Free, REACH SVHC compliant
Buy the Molex 2162731020 – Reliable Discrete Cable Assemblies for Industrial Applications
Enhance your projects with the Molex 2162731020 discrete cable assembly, designed for durability and versatility. Featuring a positive lock, dual contacts for redundancy, and a wide temperature range, it is perfect for industrial, medical, automotive, and telecommunications applications. Its flexible termination options include crimp, FFC, and IDT, supporting high-vibration environments with a secure lock mechanism. Made with high-quality polyester alloy and tin-plated phosphor bronze contacts, rated at 600V and 3A, and approved for up to 25 mating cycles, ensuring long-term performance and reliability.
Order your Molex 2162731020 series stackable cable assembly today and ensure secure, reliable connections for industrial, automotive, and communications projects.
Frequently Asked Questions
Where can I buy MOLEX 2162731020?
You can click on the BUY or RFQ button to purchase 2162731020 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162731020?
You can download the 2162731020 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162731020?
MOLEX
