MOLEX 2153432222 Power Connector Lead

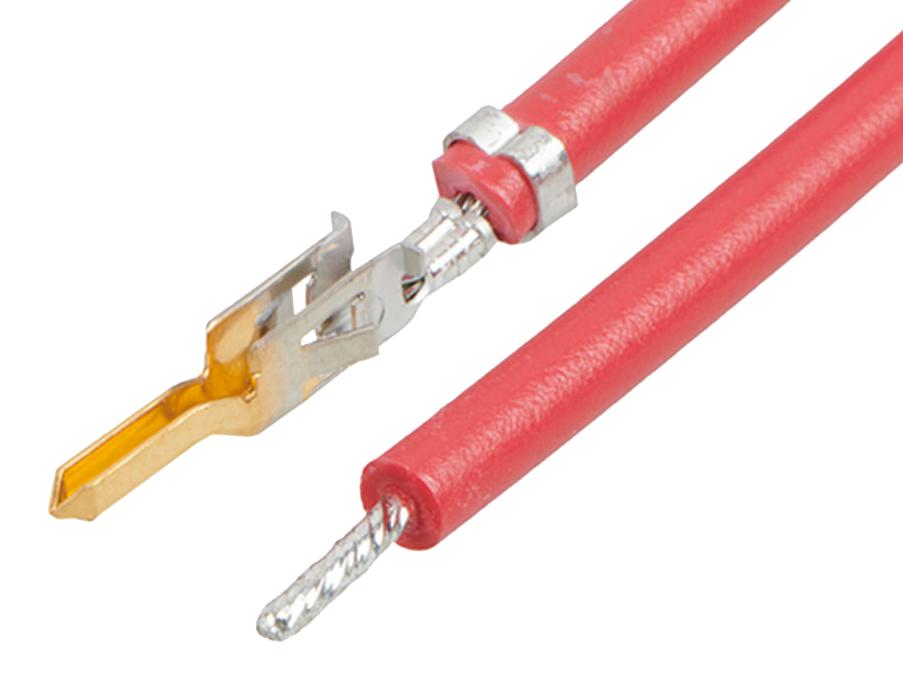

This off-the-shelf pre-crimped lead features Mini-Fit Jr. male-to-pigtail connectors with gold plating and a length of 150.00mm. Designed for power applications, it supports 16 AWG wire and has a maximum current of 9.0A at 600V. The lead is made of brass with gold plating for reliable electrical contact and tin plating for termination. It is ideal for connecting Mini-Fit Jr. connector housings, ensuring easy assembly with crimp or compression techniques, and complies with RoHS standards for environmental safety.
MOLEX 2153432222 Power Connector Lead Specifications:
- Cable Length: 150.00mm
- Circuits (Loaded): 1
- Color - Resin: Red
- Gender: Male-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Electrical Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- RoHS Compliance: Yes
- Application: Power wiring, connector to connector
- Packaging Type: Bag
- Termination Interface: Style: Crimp or Compression
Buy the Buy Molex Mini-Fit Jr. Part Number 2153432222 Online
Purchase the Molex Power Connector Lead with part number 2153432222 online for quick and reliable power cable connections. This high-quality pre-crimped male-to-pigtail leads feature gold-plated contacts for optimum conductivity and corrosion resistance. Measuring 150mm and rated for 9A at 600V, it is suitable for power wiring applications requiring secure and efficient connections. Compatible with Mini-Fit Jr. connector housings, it offers easy crimp or compression termination, providing a dependable solution for industrial and electronic device wiring needs.
Buy Molex 2153432222 now and experience reliable power connections with high-quality gold-plated contacts and easy crimp assembly.
Frequently Asked Questions
Where can I buy MOLEX 2153432222?
You can click on the BUY or RFQ button to purchase 2153432222 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153432222?
You can download the 2153432222 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153432222?
MOLEX
