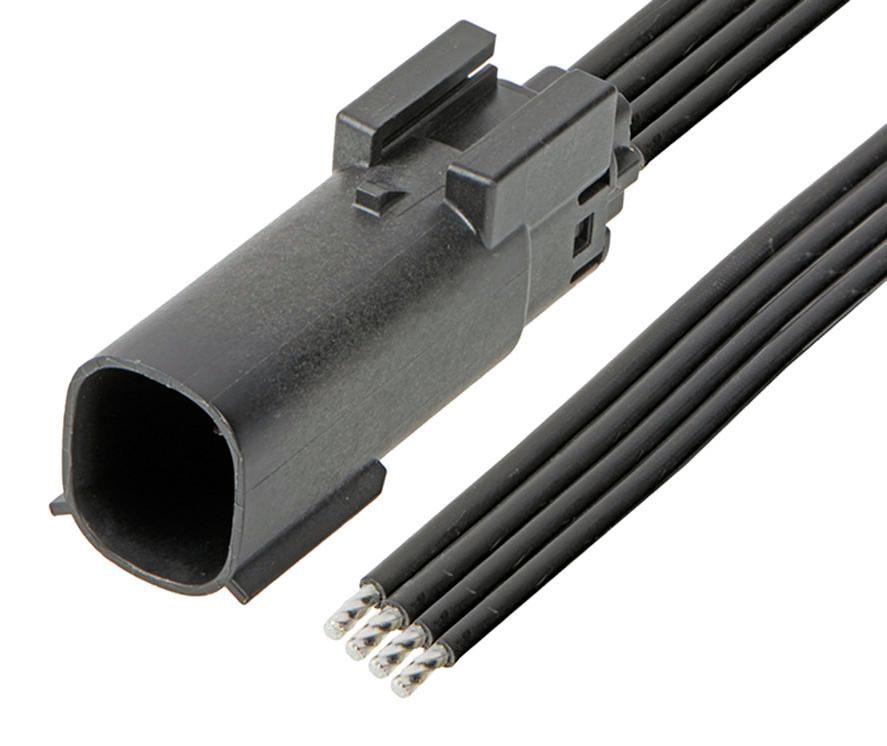

MOLEX 2162881042 MX150 Cable Assembly
The MOLEX 216288-1042 is a versatile MX150 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assembly designed for various applications including power transmission, wire-to-board connections, and wire-to-wire assemblies. This assembly features a 300mm length, tin plating on both mating and termination interfaces, and is constructed with a high-performance alloy (HPA) for durability. It supports up to 22.0A of current at 14V DC and is RoHS compliant, making it suitable for a wide range of industrial and commercial applications.
MOLEX 2162881042 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: MX150-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: SPS/Nylon
- net_weight: 395.500/g
- number_of_rows: 2
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- wire_insulation_diameter: 2.70mm max.
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_maximum_per_contact: 22.0A
- voltage_maximum: 14V DC
- upc: 193264714728
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
