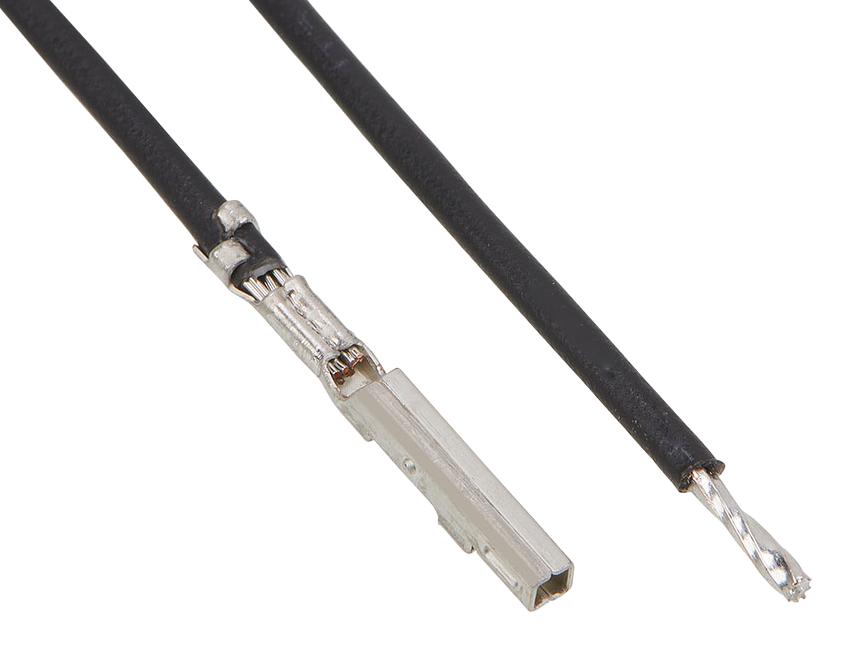

MOLEX 2153461103 Female-to-Pigtail Connector
The Pre-Crimped Lead Squba 3.6 Female-to-Pigtail from Molex is a reliable off-the-shelf connector assembly designed for efficient wiring. Featuring a 225mm length and 20 AWG copper alloy with matte tin plating, it ensures durable, corrosion-resistant connections. The connector assembly supports a maximum current of 9.0A and voltage of 600V, suitable for various industrial and electronic applications. Made from modified polystyrene resin, it is RoHS and REACH compliant, halogen-free, and low-halogen, providing environmentally friendly, high-performance electrical connections.
MOLEX 2153461103 Female-to-Pigtail Connector Specifications:
- Cable Length: 225.00mm
- Wire Size: 20 AWG
- Wire Insulation Diameter: 3.60mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Matte Tin
- Resin Material: Modified Polystyrene
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Color - Resin: Black
- Gender: Female-Pigtail
- Termineation Interface: Crimp or Compression
- Lock to Mating Part: Yes
- Number of Rows: 1
- Packaging Type: Bag
- Pin Pitch: 3.60mm
- RoHS and REACH compliant, halogen-free and low-halogen
- Reference Drawing Number: 2153461 101-000
Buy the Molex Series Squba: Female-to-Pigtail Connector 2153461103
Purchase the Molex Series Squba Female-to-Pigtail 2153461103 online for a dependable, easy-to-install wiring solution. Featuring a 225mm length and 20 AWG gauge, it delivers robust electrical performance with a maximum current of 9.0A and voltage rating of 600V. Made from durable copper alloy with matte tin plating, this halogen-free, RoHS compliant connector ensures high resistance to corrosion. Its compact design and secure locking mechanism make it an ideal choice for industrial, electronic, and automation projects, providing lasting, safe connections.
Order your Molex Series Squba 2153461103 today and ensure reliable, high-quality connections for your industrial wiring needs.
Frequently Asked Questions
Where can I buy MOLEX 2153461103?
You can click on the BUY or RFQ button to purchase 2153461103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153461103?
You can download the 2153461103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153461103?
MOLEX
