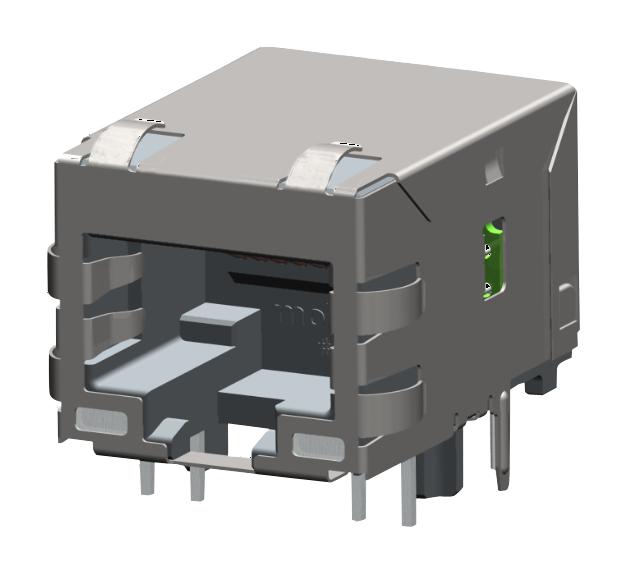

MOLEX 937535320 Ethernet Magnetic Jack
The Molex MXMag Single-Port RJ45 Magnetic Jack is a robust industrial-grade connector designed for high-performance Ethernet applications. Featuring a 21.40mm depth, right-angle orientation, and non-shielded design, this magnetic modular jack supports PoE but is optimized for standard data transmission at 100Mb speeds. Constructed with high-quality materials including phosphor bronze contacts plated with gold over palladium nickel, it ensures durability with up to 2500 mating cycles. The jack operates reliably between -40°C to +85°C and is compatible with various PCB configurations for versatile deployment in industrial networking environments.
MOLEX 937535320 Ethernet Magnetic Jack Specifications:
- Product Family: Modular Jacks/Plugs
- Series: 93753
- Component Type: PCB Jack
- Depth: 21.40mm
- Magnetic: Yes
- Color - Resin: Black
- Durability (mating cycles max): 2500
- Inverted / Top Latch: No
- Jack Height: 14.10mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold over Palladium Nickel
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Orientation: Right Angle (Side Entry)
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.57mm
- Packaging Type: Embossed Tape on Reel
- Panel Mount: Yes
- Plating min - Mating: 0.051 um (Au), 1.016 um (PdNi)
- Ports: 1 (8/8 contacts)
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40°C to +85°C
- Termination Interface: Style: Through Hole
- Wire/Cable Type: N/A
- Current - Maximum per Contact: 1A
- Voltage - Maximum: 125V
- Shielded: No
- Grounding to PCB: Yes
- Grounding to Panel: Yes
- Physical Dimensions: Jack Height 14.10mm
- Color - Resin: Black
Buy the Molex Series MXMag RJ45 Magnetic Jack: 937535320
Experience reliable high-performance Ethernet connectivity with the Molex Magnetic Jack. Designed for industrial environments, this RJ45 connector features a 21.40mm depth, right-angle design, and non-shielded construction for versatile installation. With a robust rating of 2500 mating cycles and temperature resistance from -40°C to +85°C, it ensures durability and stable data transmission at 100Mb speeds. Ideal for networking in manufacturing, automation, and industrial systems, it supports the latest standards and offers easy PCB integration for seamless deployment.
Get Molex 937535320 today—built for industrial Ethernet applications with reliable performance and long-lasting durability.
