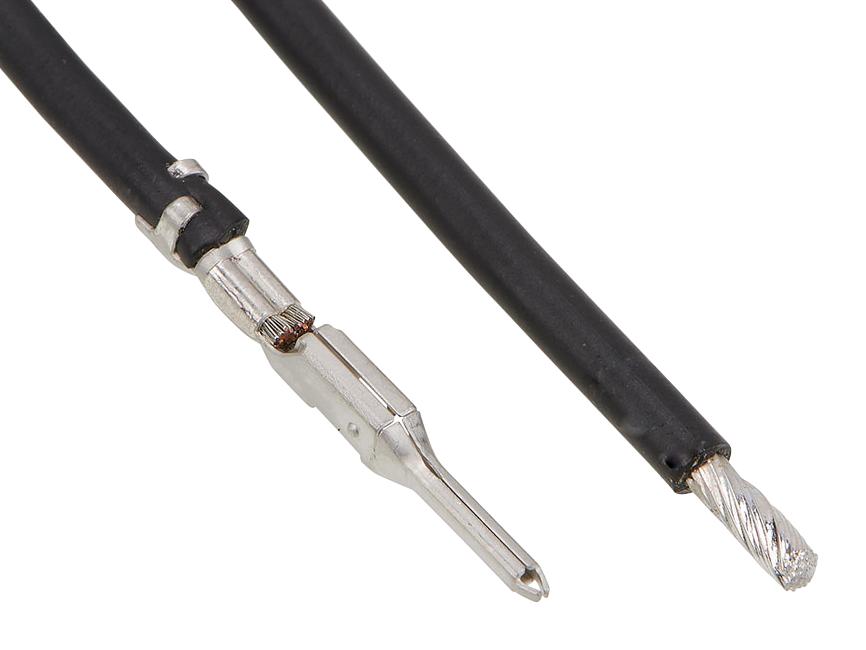

MOLEX 2153481121 Pre-crimped Lead Connector
The Molex 2153481121 is a pre-crimped male-to-pigtail connector designed for reliable wire-to-wire connections in electronic assemblies. Featuring tin (Sn) plating and a length of 75.00mm, it supports 16 AWG cables and is ideal for high-current applications up to 14.0A. Constructed from copper alloy with a matte tin finish, it ensures excellent electrical conductivity and corrosion resistance. Suitable for various industrial, automation, and control systems, this connector offers robust performance with a 600V maximum voltage rating and a 3.60mm pitch interface, making it a versatile component for wiring projects.
MOLEX 2153481121 Pre-crimped Lead Connector Specifications:
- Cable Length: 75.00mm
- Circuits: 1
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Copper Alloy
- Material - Plating: Matte Tin
- Material - Resin: Modified Polystyrene
- Net Weight: 1.520 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 3.60mm
- Wire Insulation Diameter: 1.90mm-2.40mm
- Wire Size AWG: 16
- Current - Maximum per Contact: 14.0A
- Voltage - Maximum: 600V
- Termination Interface: Crimp or Compression
- RoHS Compliant: Yes
- Halogen-Free: Yes
- UL Standard: UL 11028
Buy the Molex Series Squba Pre-Crimped Lead: 2153481121
Purchase the Molex Series Squba pre-crimped lead 2153481121 online today for dependable and efficient wire-to-wire connections. Designed with a 75mm length, 16 AWG capacity, and tin plating, this connector provides excellent electrical conductivity while resisting corrosion. It is suitable for high-current applications up to 14A at 600V, making it ideal for a variety of industrial and control systems. Easy to assemble with crimp or compression termination, ensuring secure and reliable connections in your wiring projects.
Order your Molex Series Squba 2153481121 today and ensure robust, high-quality wire connections for your electronic projects.
