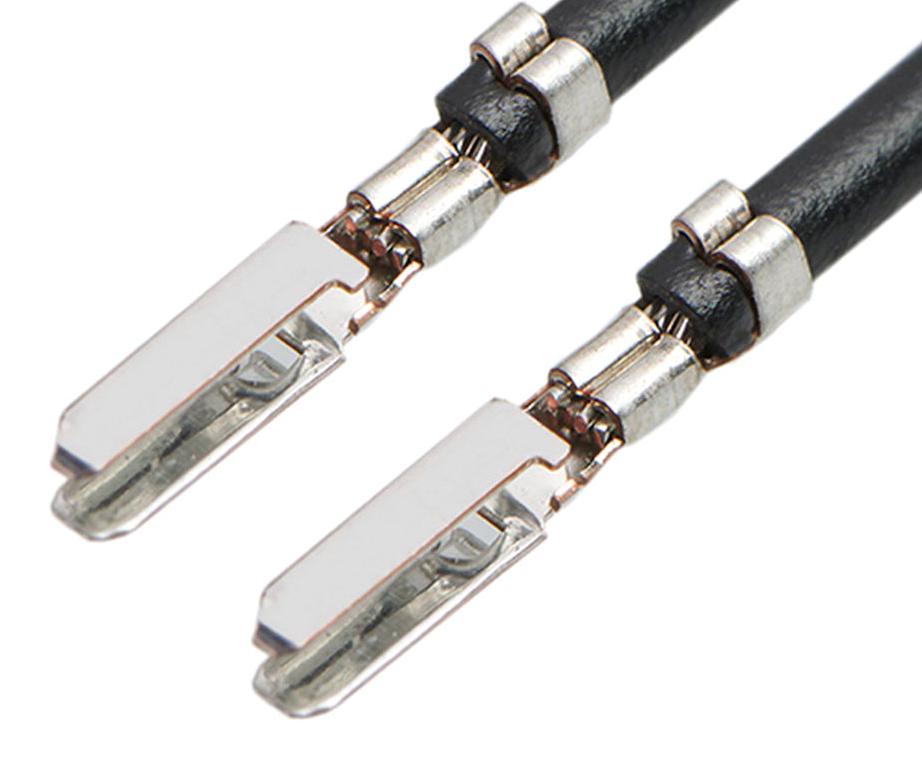

MOLEX 2157111114 CLIK-Mate Pre-Crimped Lead
The MOLEX 215711-1114 is a pre-crimped lead assembly ideal for wire-to-board applications. This CLIK-Mate connector offers a convenient, ready-to-use solution for signal transmission, eliminating the need for on-site crimping. The tin plating ensures reliable electrical contact, while the 300mm length provides flexibility in assembly. Commonly used in signal and wire-to-board applications, this component simplifies the connection process and enhances overall system efficiency.
MOLEX 2157111114 CLIK-Mate Pre-Crimped Lead Specifications:
- Cable Length: 300.00mm
- Circuits (Loaded): 1
- Color - Resin: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 0.714/g
- Plating min - Mating: 0.406µm
- Plating min - Termination: 0.406µm
- Wire Size AWG: 26
- Current - Maximum per Contact: 2.0A
- Voltage - Maximum: 100V AC (RMS)/DC
- Wire/Cable Type: UL 10002
- Configuration: Pre-crimped Lead Only
- Connector to Connector: CLIK-Mate-to-CLIK-Mate
- Gender: Male-Pigtail
- Single Ended: Yes
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 0.78-1.28mm
Buy the 215711-1114 MOLEX CLIK-Mate Pre-Crimped Lead | myMectronic
Purchase the genuine MOLEX 215711-1114 Pre-Crimped Lead securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2157111114?
You can click on the BUY or RFQ button to purchase 2157111114 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2157111114?
You can download the 2157111114 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2157111114?
MOLEX
