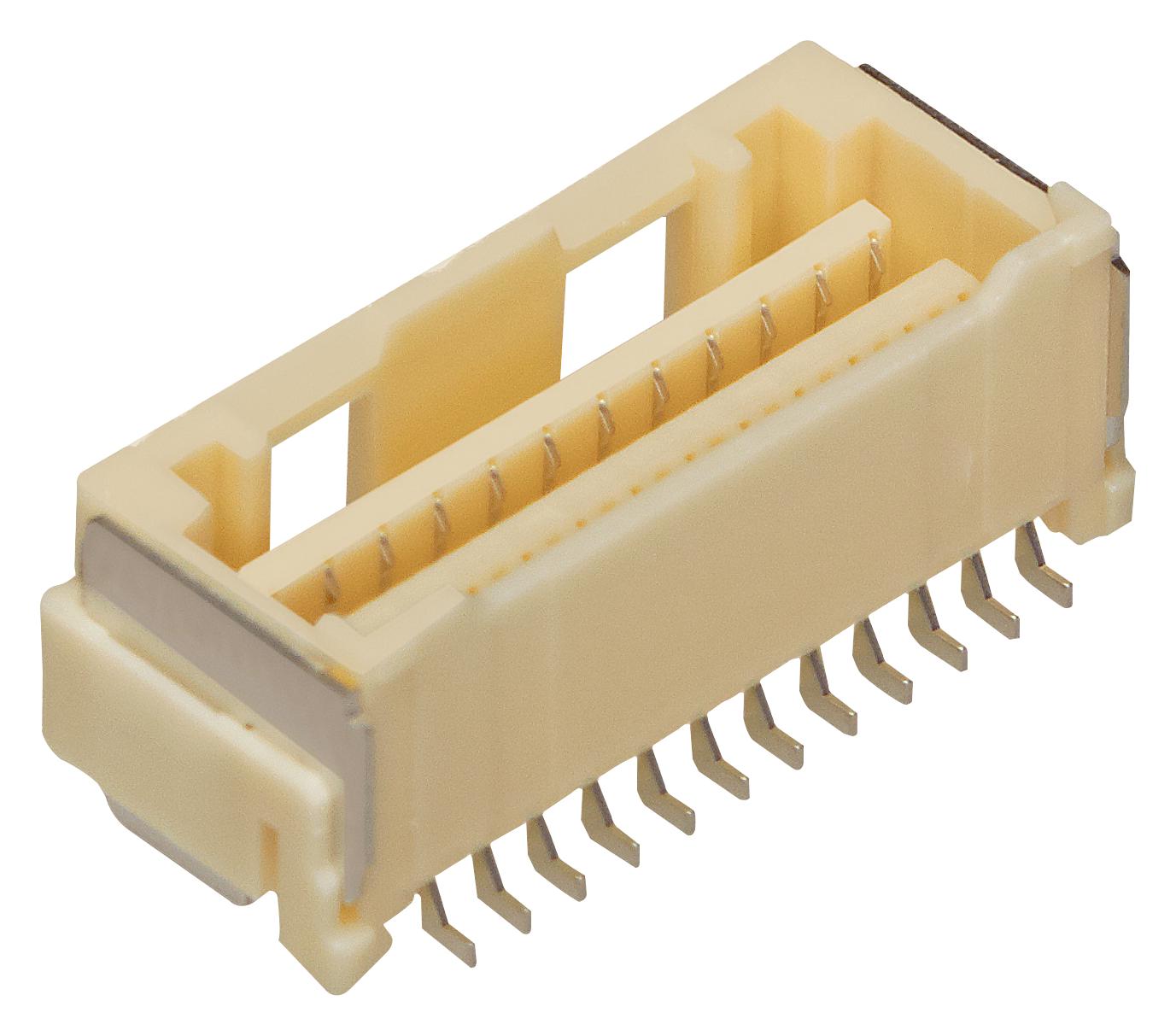

MOLEX 5054051470 Wire-to-Board Connector
The 5054051470 is a 1.50mm pitch CLIK-Mate™ wire-to-board PCB receptacle with 14 circuits, designed for surface mount applications. It features gold-plated contacts for reliable electrical connection, a vertical orientation, and a single row configuration. Its durable thermoplastic body withstands up to 30 mating cycles, ensuring reusability. Suitable for various electronic assemblies, it includes a pick-and-place area for automated mounting. Compliant with RoHS standards, this connector offers high performance in a compact design, ideal for industrial and consumer electronics requiring secure connections and easy assembly.
MOLEX 5054051470 Wire-to-Board Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits: 14
- Color: Beige
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: High Temperature Thermoplastic
- Durability: Up to 30 mating cycles
- Operating Temperature Range: -40°C to +105°C
- Current Capacity: 2.0A per contact
- Maximum Voltage: 100V AC/DC
- Mating Height: 9.70mm
- Orientation: Vertical
- Packaging: Embossed Tape on Reel
- Surface Mount: Yes
- RoHS Compliance: Yes
- Halogen-Free: No
Buy the Molex Series CLIK-Mate 1.50mm: 5054051470
Secure your electronic assemblies with the Molex Series CLIK-Mate wire-to-board connector. Featuring a 1.50mm pitch, 14 circuits, gold-plated contacts, and a surface mount design, it ensures durability and reliable performance. Its vertical orientation permits easy installation, supported by RoHS compliance and a robust thermoplastic body that withstands up to 30 mating cycles. Ideal for industrial, consumer, and communication devices, this connector offers technicians an efficient, high-quality solution for complex wiring projects, simplifying assembly and maintenance tasks.
Order your Molex Series CLIK-Mate 1.50mm connector today and give your projects the dependable quality they deserve for reliable electrical connections.
