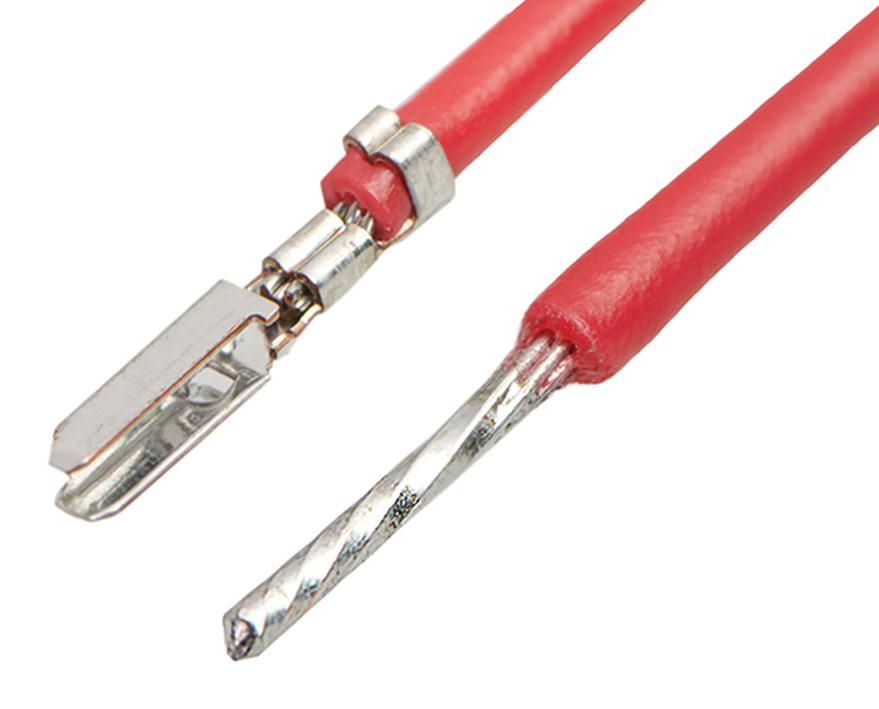

MOLEX 2157112104 CLIK-Mate Pre-Crimped Lead
The MOLEX 215711-2104 is a pre-crimped lead assembly ideal for signal transmission in wire-to-board applications. This assembly utilizes the CLIK-Mate connector system, offering a robust and reliable connection. The lead is 300.00mm in length, utilizes 28 AWG wire, and features tin plating on both mating and termination surfaces for enhanced conductivity and corrosion resistance. Its red resin color provides easy identification in complex assemblies. This component is RoHS compliant and suitable for various industrial and commercial applications requiring secure and efficient signal connectivity.
MOLEX 2157112104 CLIK-Mate Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Board Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: CLIK-Mate-to-CLIK-Mate
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 0.434/g
- packaging_type: Bag
- plating_min_mating: 0.406µm
- plating_min_termination: 0.406µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.78-1.28mm
- wire_size_awg: 28
- wire_cable_type: UL 10002
- current_max_per_contact: 2.0A
- voltage_max: 100V AC (RMS)/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
