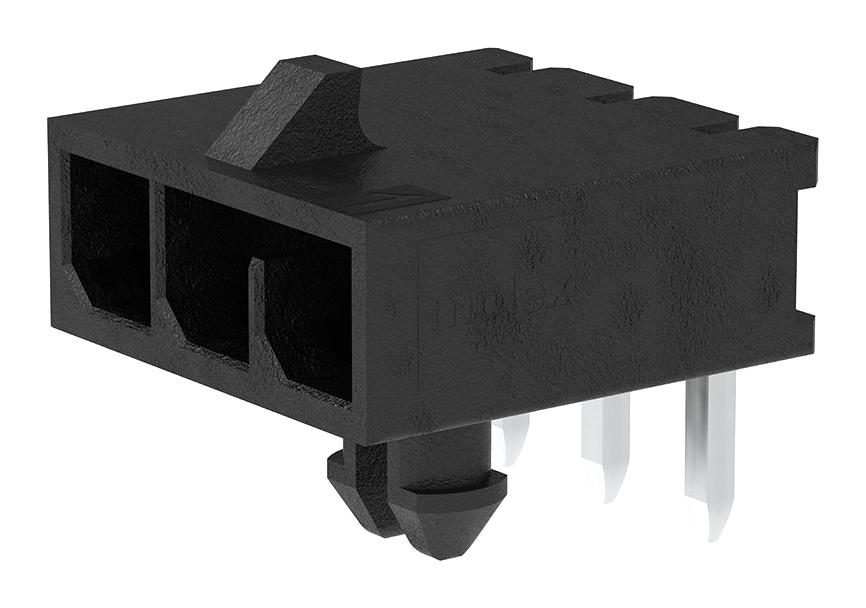

MOLEX 2157601002 Micro-Fit+ Header
The MOLEX 215760-1002 is a Micro-Fit+ right-angle header, part of the 215760 series. This connector is designed for robust wire-to-board applications, offering a 3.00mm pitch and a single-row configuration with 2 circuits. It boasts a matte tin plating for reliable electrical contact and is constructed with a high copper alloy and liquid crystal polymer for durability. The header is glow-wire capable and features keying and locking mechanisms for secure mating. It is suitable for applications requiring a compact and reliable connection in various industrial and consumer electronics.
MOLEX 2157601002 Micro-Fit+ Header Specifications:
- Circuit_Count: 2
- Color: Black
- Durability_Mating_Cycles: 25
- Glow_Wire_Capable: Yes
- Keying: Yes
- Locking: Yes
- Material_Metal: High Copper Alloy
- Material_Plating: Matte Tin
- Material_Resin: Liquid Crystal Polymer
- Net_Weight_g: 0.408
- Number_of_Rows: 1
- Orientation: Right Angle
- PCB_Thickness_Recommended_mm: 1.57
- Pitch_Mating_Interface_mm: 3.00
- Pitch_Termination_Interface_mm: 3.00
- Polarized_to_Mating_Part: Yes
- Polarized_to_PCB: Yes
- Shrouded: Yes
- Temperature_Range_Operating_C: -40 to +105
- Termination_Interface_Style: Through Hole
- Current_Max_per_Contact_A: 13.0
- Voltage_Max_AC_RMS_V: 600
- Voltage_Max_DC_V: 600
