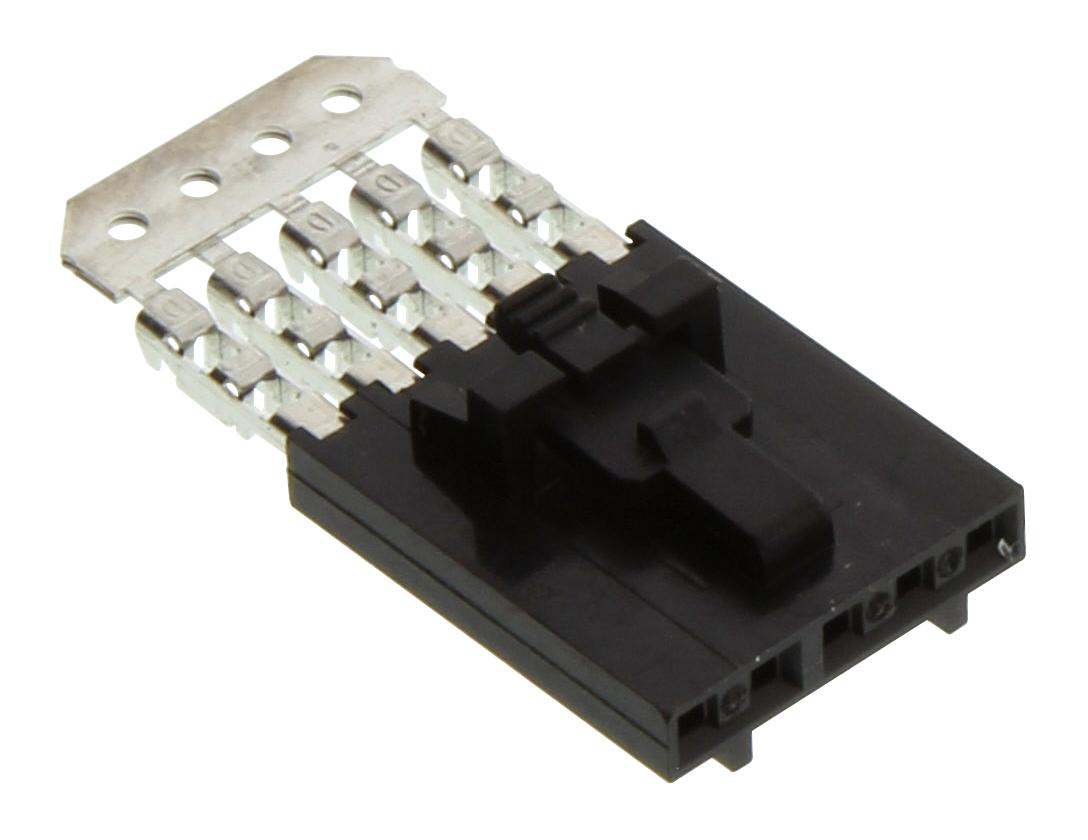

MOLEX 14567052 Insulation Displacement Connector Assembly
The MOLEX 14-56-7052 is a versatile insulation displacement connector assembly designed for applications requiring secure and reliable connections. With a 2.54mm pitch and 5 circuits, this connector is suitable for a range of wire sizes (up to 22 AWG) and offers a positive lock mechanism for enhanced stability. Its tin plating and polyester alloy construction ensure durability and corrosion resistance, making it ideal for various industrial and commercial applications. The connector is RoHS compliant and supports efficient wire termination.
MOLEX 14567052 Insulation Displacement Connector Assembly Specifications:
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 3.810µm
- Plating min - Termination: 1.905µm
- Circuits (Loaded): 5
- Material - Resin: Polyester Alloy
- Material - Plating: Tin
- Material - Metal: Phosphor Bronze
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V
- Flammability: 94V-0
- Operating Temperature Range: -40° to +105°C
- Net Weight: 0.943/g
- Wire Size AWG: 22
- Number of Rows: 1
- Lock to Mating Part: Yes
- PCB Retention: Yes
- Stackable: Yes
- Entry Angle: Vertical
- Durability (mating cycles max): 25
- Wire Insulation Diameter: 1.35mm max.
- Termination Interface: Style: IDT or Pierce
