MOLEX 430300039 Micro-Fit Terminal

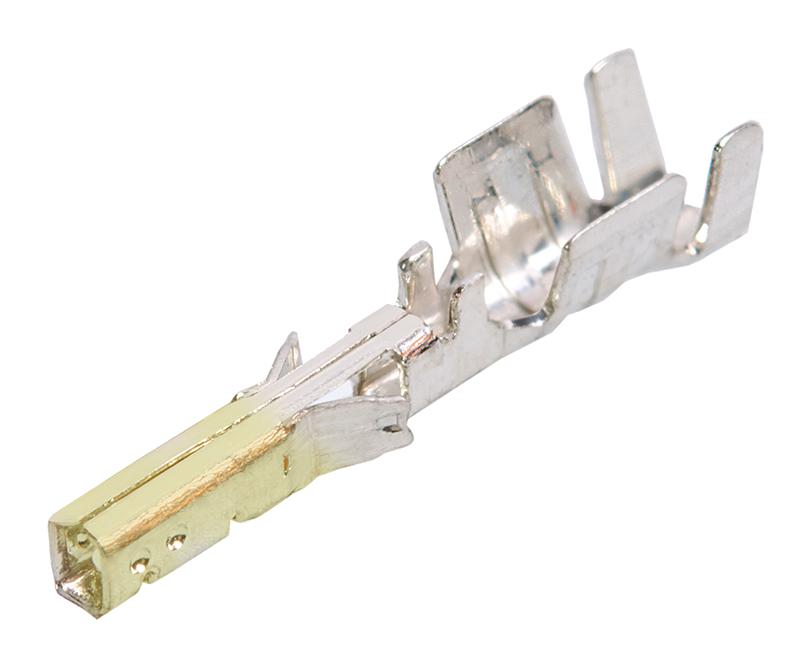

The Micro-Fit 3.0 Crimp Terminal Female is designed for 18 AWG wires with a maximum insulation outside diameter of 0.073 inches or 1.85mm. Made from phosphor bronze with gold plating, it offers reliable electrical connections in power and wire-to-board applications. Suitable for crimp or compression processes, this terminal is packaged on reels for easy automation and high-volume production. It meets RoHS and ELV compliance standards, ensuring environmentally friendly and low-halogen performance, making it ideal for various industrial and electronic device applications.
MOLEX 430300039 Micro-Fit Terminal Specifications:
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Size AWG: 18
- Wire Insulation Diameter: 0.073 inches / 1.85 mm
- Maximum Insulation Outside Diameter: 0.073 inches / 1.85 mm
- Current - Maximum per Contact: 8.5A
- Packaging Type: Reel
- Crimp or Compression: Crimp
- Net Weight: 0.062 grams
- RoHS Compliant: Yes
- ELV Relevance: Not Relevant
- Halogen-Free: Yes
- Low-Halogen: Yes
- Reference Drawing Number: PS-43045-001
- Certification: RoHS, REACH SVHC compliant
Buy the Molex Series Micro-Fit Crimp Terminal: 0430300039
Enhance your electronic assembly with the Molex Micro-Fit 3.0 Crimp Terminal Female, designed for 18 AWG wires with a maximum insulation diameter of 0.073 inches. Constructed from phosphor bronze and gold plated, it ensures high-quality, reliable electrical connections in power, wire-to-board, and wire-to-wire applications. Its reel packaging facilitates automation, making it ideal for high-volume manufacturing. Compliant with RoHS and ELV standards, this crimp terminal promotes environmentally friendly manufacturing while delivering long-lasting durability and excellent conductivity for industrial electronic systems.
Get Molex Micro-Fit 3.0 Crimp Terminal Female 0430300039 today—built for reliable power connections and durable electronic assembly.
Frequently Asked Questions
Where can I buy MOLEX 430300039?
You can click on the BUY or RFQ button to purchase 430300039 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430300039?
You can download the 430300039 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430300039?
MOLEX
