MOLEX 2157601007 Datasheet & Stock

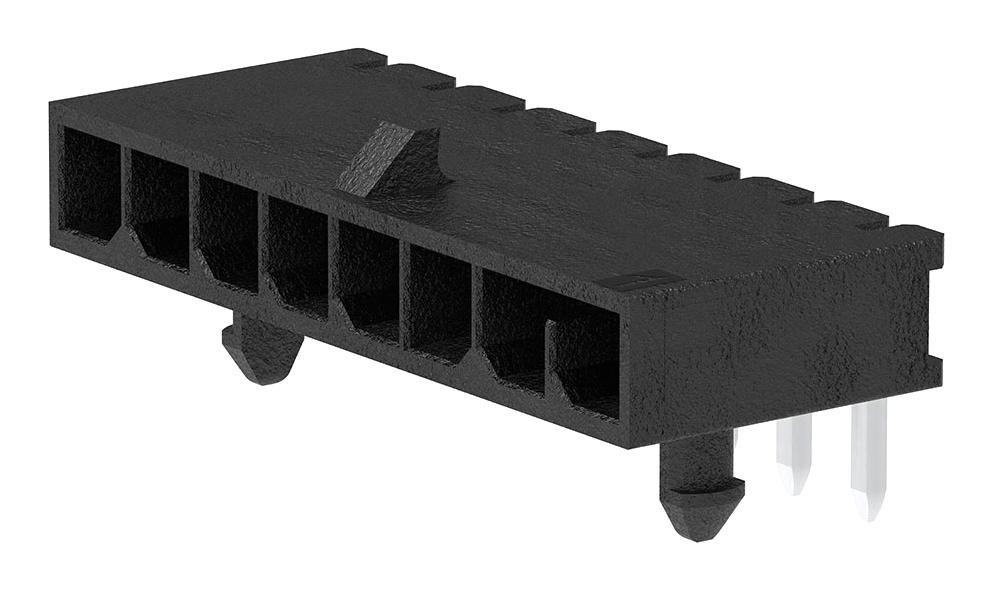

This is a 3mm pitch black single-row Micro-Fit+ right-angle header from the 215760 series. It features matte tin plating for corrosion resistance and meets UL 94V-0 flame retardancy standards with glow-wire capability. The connector is keyed to ensure proper mating, with a lock mechanism to secure the connection. Made from high copper alloy metal and liquid crystal polymer resin, it offers durability and stability. The design includes polarization to match mating parts and PCBs, with a shrouded configuration for added guidance. The through-hole termination interface facilitates secure mounting. Operating temperature ranges from -40°C to +105°C. Each contact can handle a maximum current of 13A, with a voltage rating of up to 600VAC (RMS) or DC.
Frequently Asked Questions
Where can I buy MOLEX 2157601007?
You can click on the BUY or RFQ button to purchase 2157601007 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2157601007?
You can download the 2157601007 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2157601007?
MOLEX
