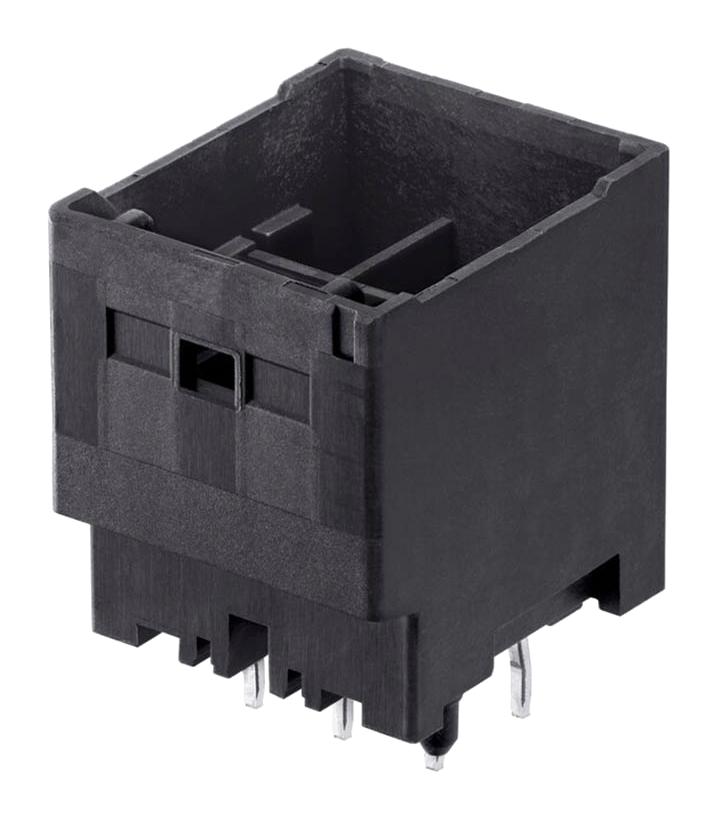

MOLEX 2122100041 CP-3.3 Header Connector
The MOLEX 212210-0041 is a CP-3.3 header connector within the 212210 series, engineered for robust wire-to-board and wire-to-wire connectivity. This connector boasts a 3.30mm pitch, a dual-row layout, and a vertical orientation, making it ideal for space-constrained applications. Its polarized design and positive lock mechanism ensure secure and reliable mating. Constructed with a copper alloy and polyamide resin, and finished with matte tin plating, the 212210-0041 is designed for durability and optimal electrical performance. It is glow-wire capable and operates within a temperature range of -40°C to +105°C, making it suitable for a wide range of industrial environments. It is RoHS Compliant and REACH SVHC Not Contained.
MOLEX 2122100041 CP-3.3 Header Connector Specifications:
- Pitch - Mating Interface: 3.30mm
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Material - Resin: Polyamide
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Metal: Copper Alloy
- Color - Resin: Black
- Orientation: Vertical
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 500V AC/DC
- PCB Tail Length: 3.35mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Lock to Mating Part: Yes
- Guide to Mating Part: Yes
- Keying to Mating Part: Yes
- Breakaway: No
- First Mate / Last Break: No
- Glow-Wire Capable: Yes
- Net Weight: 1037.640/mg
- Number of Rows: 2
- Packaging Type: Tray
