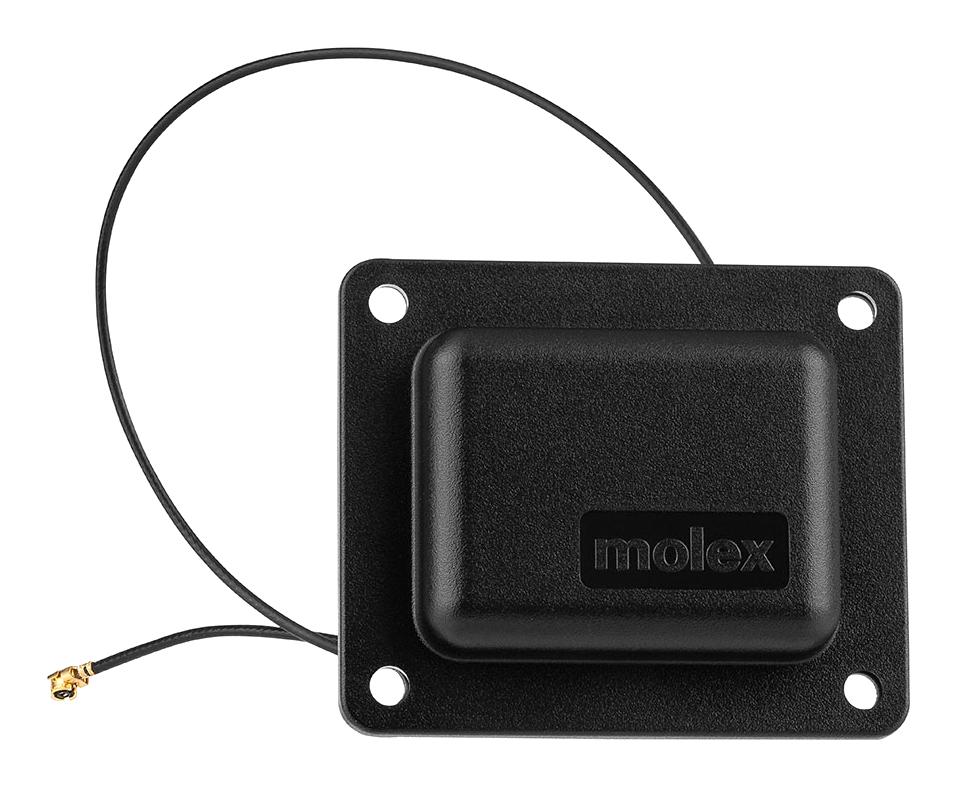

MOLEX 2158680001 2.4/5GHz On-Metal Antenna
The MOLEX 215868-0001 is a versatile on-metal antenna engineered for a wide range of Internet of Things (IoT) applications, including Wi-Fi, Bluetooth, and Zigbee devices. Its 300mm cable length provides flexibility in placement, and compatibility with U.FL/I-PEX MHF connectors simplifies integration. The antenna delivers a peak gain of 2.0 dBi at 2.4 GHz and 5.5 dBi at 5 GHz, ensuring robust wireless performance. It is designed for operation within a temperature range of -40°C to +85°C, making it suitable for diverse environmental conditions. This antenna is a reliable solution for connecting devices to wireless networks.
MOLEX 2158680001 2.4/5GHz On-Metal Antenna Specifications:
- Product Family: Antennas
- Series: 215868
- Component Type: External Antenna
- Mates With: U.FL / I-PEX MHF Connector
- Overview: Internet of Things (IoT) Antennas: Wi-Fi, Bluetooth, Zigbee
- Protocol: BT, DSRC, Wi-Fi
- Type: Wi-Fi Antenna
- Cable Length: 300.00mm
- Mounting Style: Adhesive, Screws
- Net Weight: 7.040/g
- Packaging Type: Tray
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Operating Temperature Range: -40° to +85°C
- Band 1 Start Frequency: 2400 MHz
- Band 1 End Frequency: 2500 MHz
- Band 2 Start Frequency: 5150 MHz
- Band 2 End Frequency: 5850 MHz
- Peak Gain: 2.0 dBi @ 2.4 GHz, 5.5 @ 5 GHz
- Return Loss: < -6 dB
- Total Efficiency: >45% @ 5 GHz, >50% @ 2.4 GHz
Buy the 215868-0001 MOLEX 2.4/5GHz On-Metal Antenna | myMectronic
Purchase the MOLEX 215868-0001 antenna securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2158680001?
You can click on the BUY or RFQ button to purchase 2158680001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2158680001?
You can download the 2158680001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2158680001?
MOLEX
