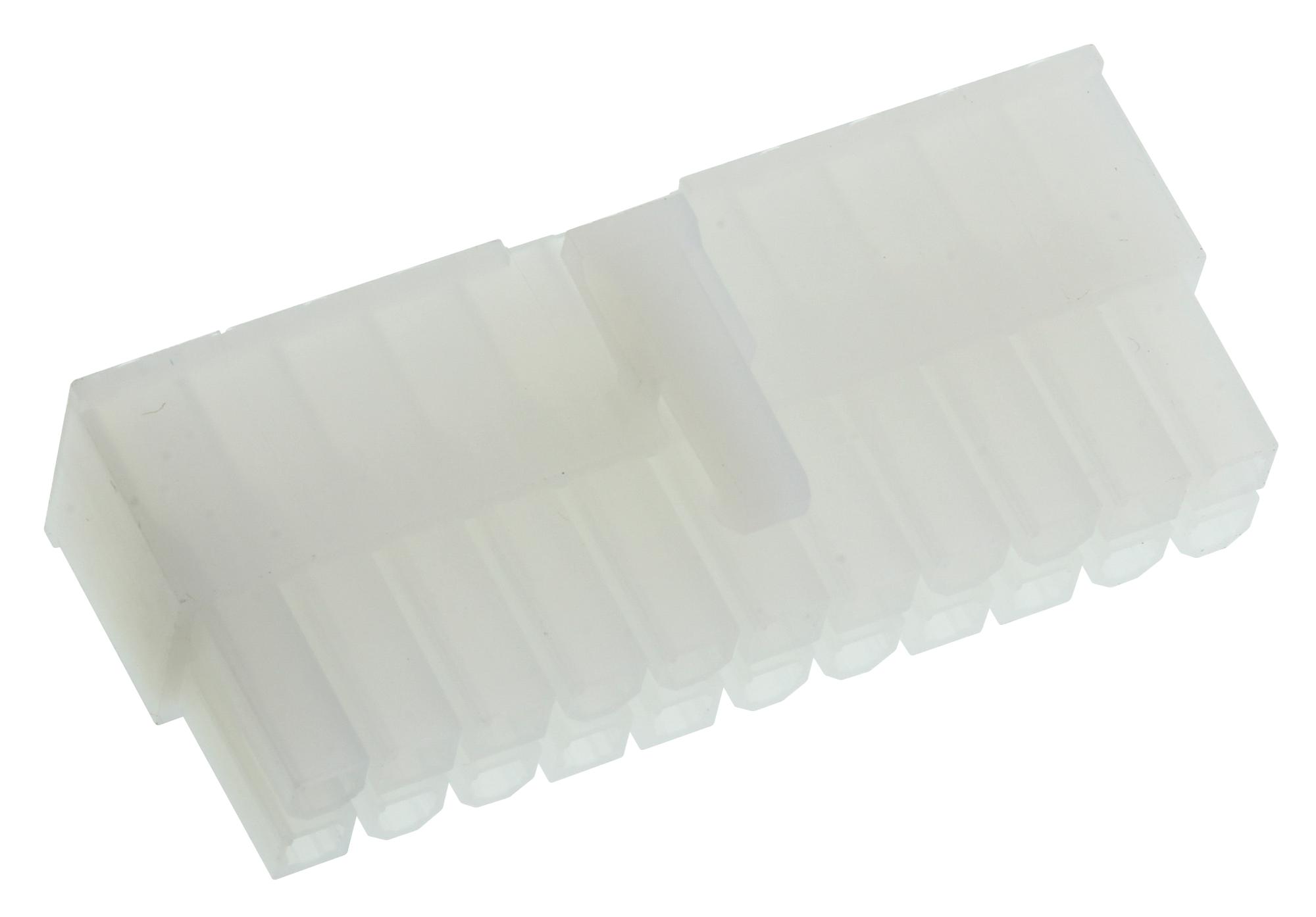

MOLEX 39012220 Power Connector
The Mini-Fit Jr.™ Receptacle Housing is a dual-row power connector featuring 22 circuits, made from nylon with UL 94V-2 flammability rating and natural color. Designed for wire-to-board and wire-to-wire applications, it supports a maximum current of 13A per circuit when loaded with 16 AWG wire. Operating within a temperature range of -40°C to +105°C, this receptacle provides reliable electrical performance, is RoHS compliant, halogen-free, and suitable for various industrial and electronic projects requiring high-current connections and robust durability.
MOLEX 39012220 Power Connector Specifications:
- Number of circuits: 22
- Material: Nylon
- Flammability rating: UL 94V-2
- Color: Natural
- Maximum current per contact: 13A
- Operating temperature range: -40°C to +105°C
- Pitch: 4.20mm
- Net weight: 4333.500 mg
- Gender: Receptacle
- Packaged in: Bag
- Gender: No (receptacle)
- RoHS compliance: Yes
- Halogen-Free: Yes
- CSA and UL certified
Buy the Molex Series Mini-Fit Jr. Power Connectors: 0039012220
Experience dependable electrical performance with the Molex Series Mini-Fit Jr. 0039012220 power connector. Featuring 22 circuits and a current capacity of 13A per contact, this nylon housing is UL 94V-2 flame-rated and operates across -40°C to +105°C temperatures. Its precise design supports easy mating, high durability, and compliance with RoHS standards. Perfect for power and wiring applications in industrial, electronic, and manufacturing sectors, this connector ensures a secure and efficient connection for demanding electrical projects.
Order your Molex Series Mini-Fit Jr. 0039012220 power connector today and ensure your projects have reliable, high-current electrical connections suitable for demanding applications.
Frequently Asked Questions
Where can I buy MOLEX 39012220?
You can click on the BUY or RFQ button to purchase 39012220 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39012220?
You can download the 39012220 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39012220?
MOLEX
