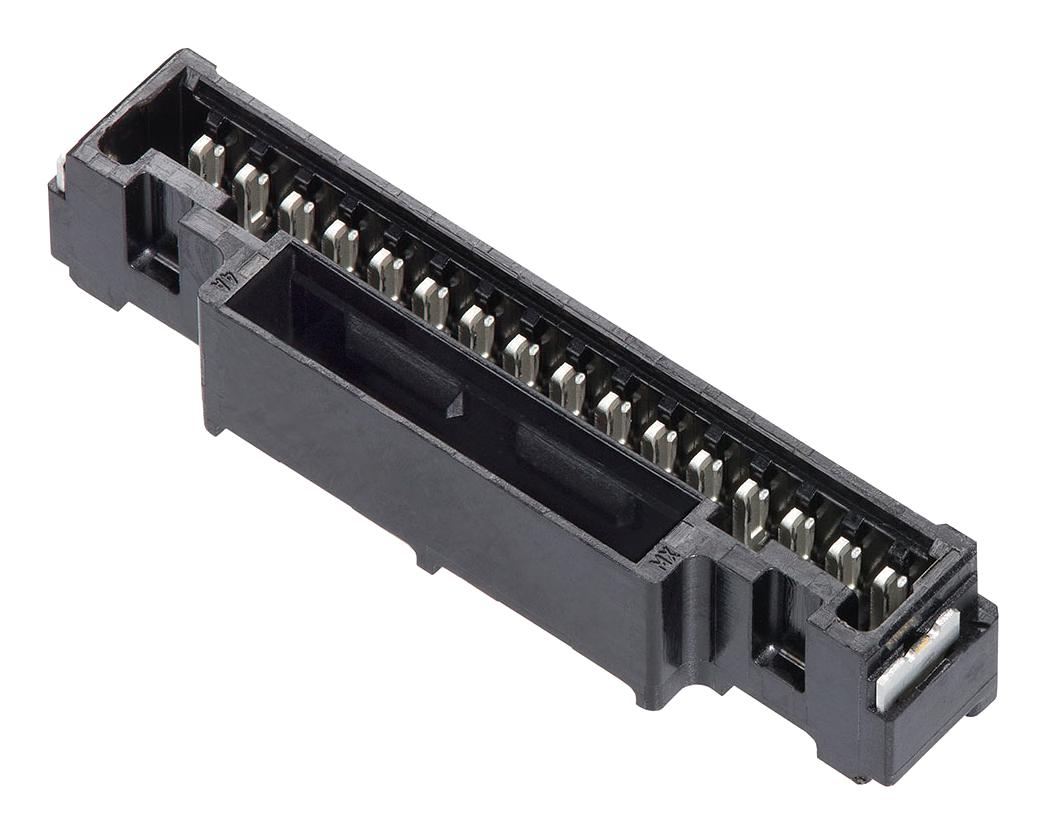

MOLEX 2059571071 Micro-Lock Plus Connector
The Micro-Lock Plus PCB header with Potting Capability is a 1.25mm pitch, single-row, surface-mount connector designed for reliable wire-to-board connections in industrial applications. It features a positive lock mechanism, tin-bismuth plating for corrosion resistance, and supports up to 10 circuits. The connector is shrouded, shippable on tape and reel, and compatible with micro-lock receptacle housings. It operates within a temperature range of -40°C to +105°C, ensuring durability for demanding environments, and complies with RoHS, China RoHS, and UL/CSA certifications.
MOLEX 2059571071 Micro-Lock Plus Connector Specifications:
- Pitch: 1.25mm
- Circuits (Loaded): 10
- Maximum Circuits: 10
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Material - Resin: Polyamide
- Durability (mating cycles max): Not specified
- Temperature Range - Operating: -40°C to +105°C
- Terminal Style: Surface Mount
- Packaging: Tape and Reel
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- RoHS Compliance: Yes
- UL/CSA Certified: Yes
- Current per Contact: 3.6A
- Voltage Max: 50V AC/DC
- Guide to Mating Part: Micro-Lock Receptacle Housing
- Guide to Mating: Yes
- Shrouded: Yes
- Stackable: No
- Surface Mount Compatible: Yes
Buy the Molex 2059571071 – Reliable Micro-Lock Plus PCB Header for Industrial Applications
Purchase the Molex Micro-Lock Plus Connector today for dependable wire-to-board connectivity in industrial and electronic applications. This 1.25mm pitch, surface-mount PCB header offers robust performance with a positive lock mechanism, tin-bismuth plating, and compatibility with micro-lock receptacles. Ideal for demanding environments, it operates within -40°C to +105°C temperature range, supports up to 10 circuits, and comes in a tape and reel package. Ensure reliable, tool-less installation with excellent corrosion resistance and UL/CSA certification—order now for fast, online delivery.
Get Molex 2059571071 today—built for precision, durability, and reliable wire-to-board connections in industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 2059571071?
You can click on the BUY or RFQ button to purchase 2059571071 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2059571071?
You can download the 2059571071 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2059571071?
MOLEX
