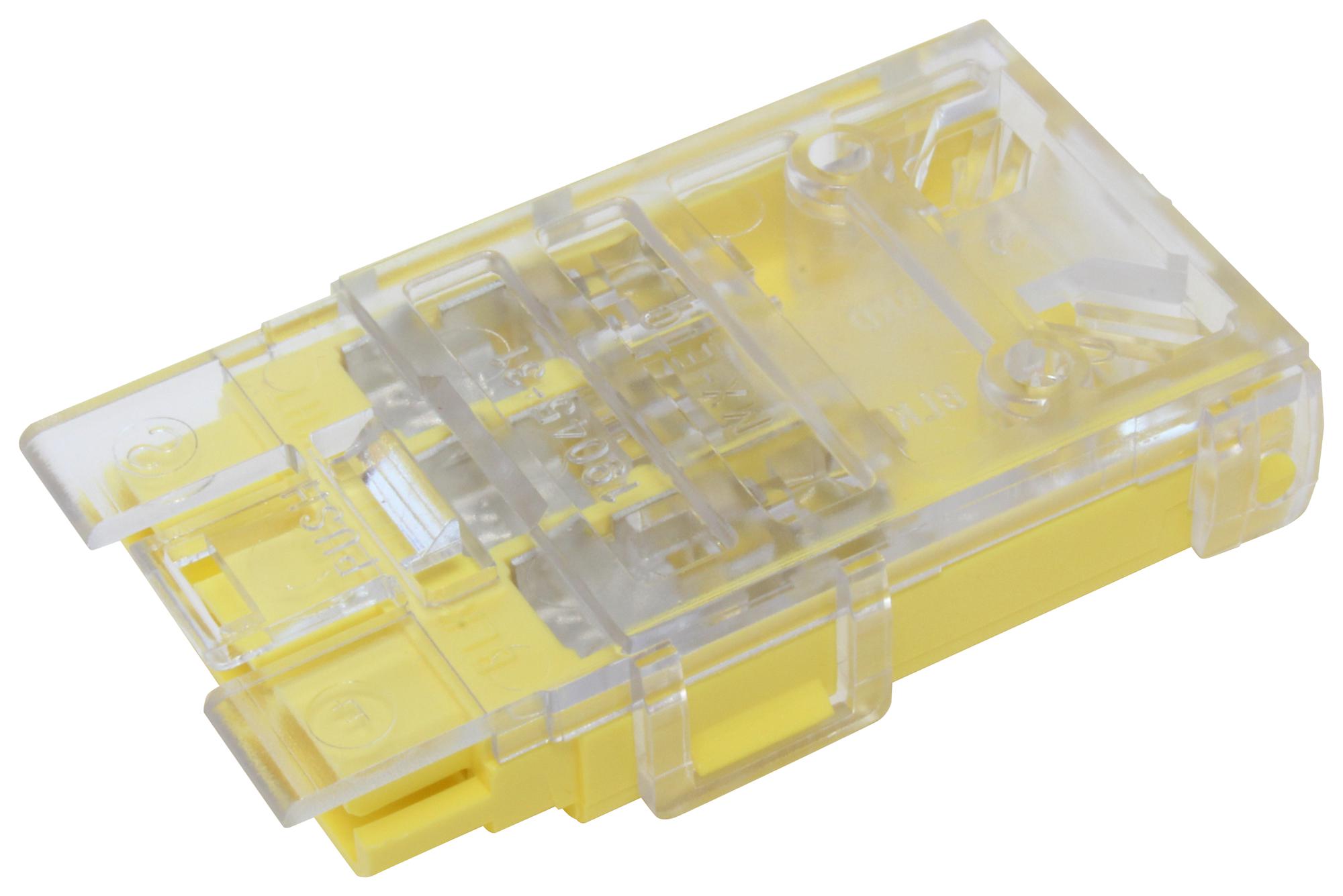

MOLEX 194031010 SCPC Power Connector
The MOLEX 19403-1010 Self-Contained Power Connector (SCPC) is a versatile solution for wire-to-wire applications, particularly suitable for use in boats and other environments requiring 110 and 220 AC circuits. Constructed with a high copper alloy and tin plating, this connector offers excellent conductivity and durability. Its vertical orientation and PCB retention features ensure secure connections, while its wide operating temperature range (-35°C to +85°C) makes it suitable for diverse industrial environments. The connector supports up to 20.0A of current and 600V of voltage, providing reliable power delivery for various applications.
MOLEX 194031010 SCPC Power Connector Specifications:
- Circuits (Loaded): 2
- Circuits (maximum): 2
- Circuits Detail: 2 Circuits with Ground
- Color - Resin: Clear, Natural
- Durability (mating cycles max): 250
- Flammability: 94-5VA
- Lock to Mating Part: Yes
- Material - Metal: High Copper Alloy
- Material - Plating (Mating): Tin
- Material - Plating (Termination): Tin
- Material - Resin: Polycarbonate, Polyester
- Net Weight: 27.307/g
- Number of Rows: 1
- Orientation: Vertical
- PCB Retention: N/A
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 10.10mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Polarized to Mating Part: Yes
- Surface Mount Compatible (SMC): N/A
- Temperature Range - Operating: -35° to +85°C
- Termination Interface: Style: IDT or Pierce
- Wire Size AWG: 12
- Current - Maximum per Contact: 20.0A
- Voltage - Maximum: 600V
- Engineering Number: 194031010 P
- Ratchet Hand Tool: 192850180
- Hand Crimp Tool, SC: 640015300
- Manual Arbor Press: 640060200
