MOLEX 2160101041 Datasheet & Stock

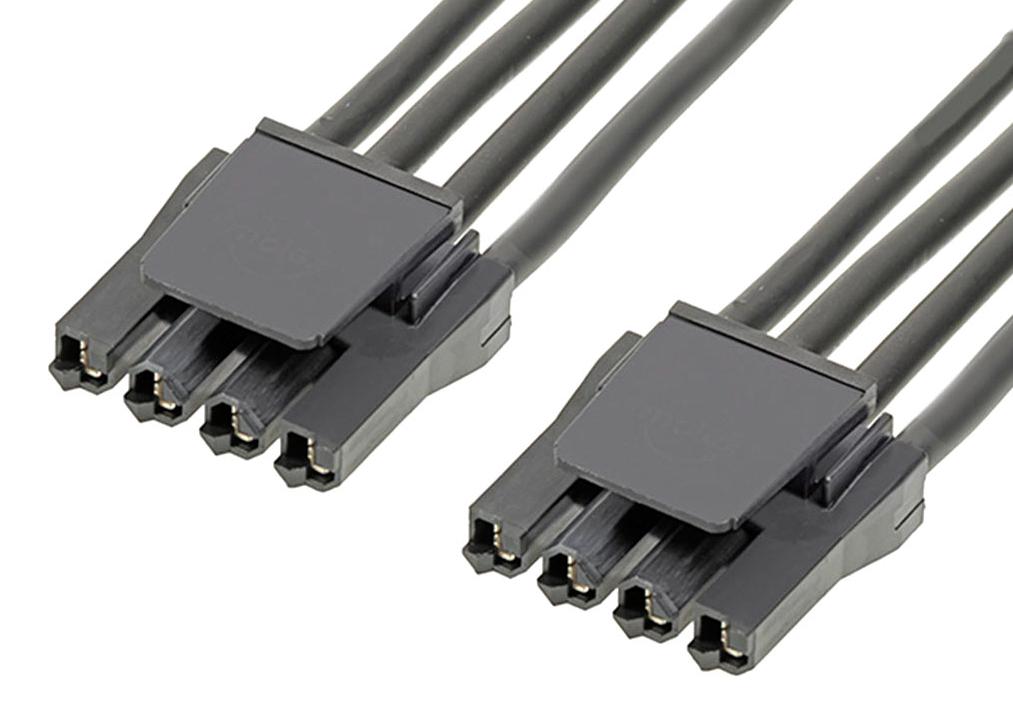

The 216010 series Super Sabre-to-Super Sabre off-the-shelf cable assemblies are designed to deliver high current and voltage performance, rated at 34A per blade and 600V. They are suitable for high-current, high-voltage applications across various industries, including automotive, consumer, medical, and telecommunications. The assemblies feature a low-profile design with silver-plated, high-conductivity alloy terminals that ensure reliable, high-performance connections while eliminating fretting corrosion. Positive latch and terminal position assurance (TPA) features on the receptacle prevent terminal back-out in high-vibration environments. The flat-blade terminals have four independent contact points and are fully isolated on both sides for enhanced safety. Constructed with nylon housing and copper contacts, these assemblies meet safety standards, including UL1977 and UL60950 finger test certification. Operating temperature ranges up to +105°C, compliant with USCAR-2 level 3, and offer an affordable alternative to gold-plated options, optimized for 10 to 12 AWG wires.

View 2160101041Datasheet [pdf]
