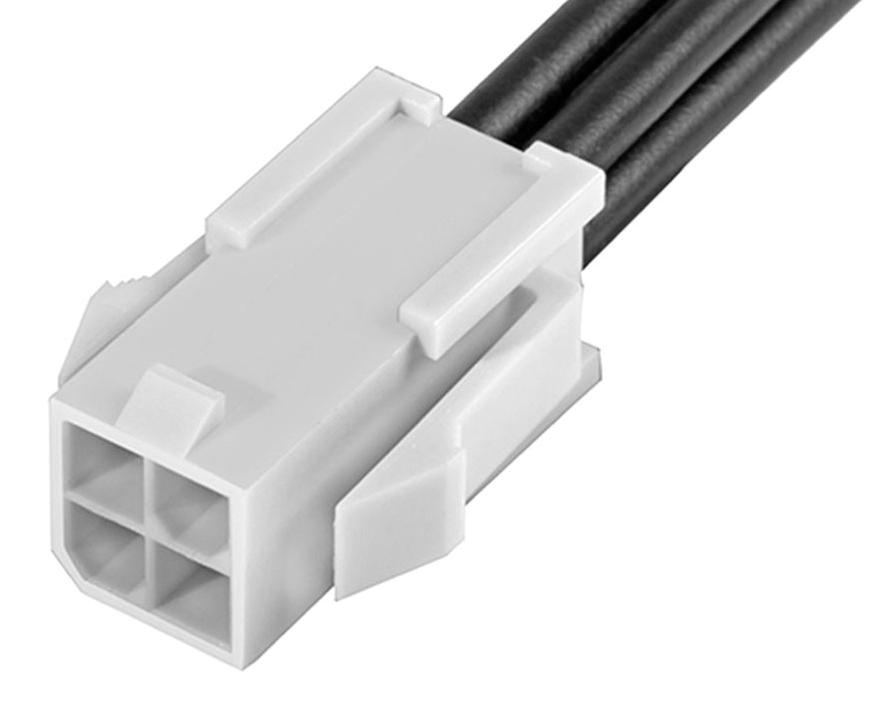

MOLEX 2153262043 Mini-Fit Jr. Cable Assembly
The MOLEX 215326-2043 is a Mini-Fit Jr. female-to-pigtail off-the-shelf (OTS) cable assembly designed for power applications. It boasts a dual-row configuration, 4 circuits, and a 600mm length, making it suitable for various wire-to-board and wire-to-wire connections. The gold plating on the mating interface ensures excellent conductivity and durability, while the tin plating on the termination interface facilitates secure crimp or compression connections. Constructed with a brass metal core, nylon resin insulation, and a black resin color, this assembly provides robust performance and ease of integration into diverse industrial systems.
MOLEX 2153262043 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 600.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 54.090/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_AWG: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264590148
- mates_with: ['5559 Dual Row', '5566 Vertical with Pegs', '5566 Vertical without Pegs', '5569 Right Angle Dual Row with Flanges', '5569 Right Angle Dual Row with Pegs', '43810', '44068', '44281', '87427', '42404', '42440']
- drawing_number: 2153262041-000
