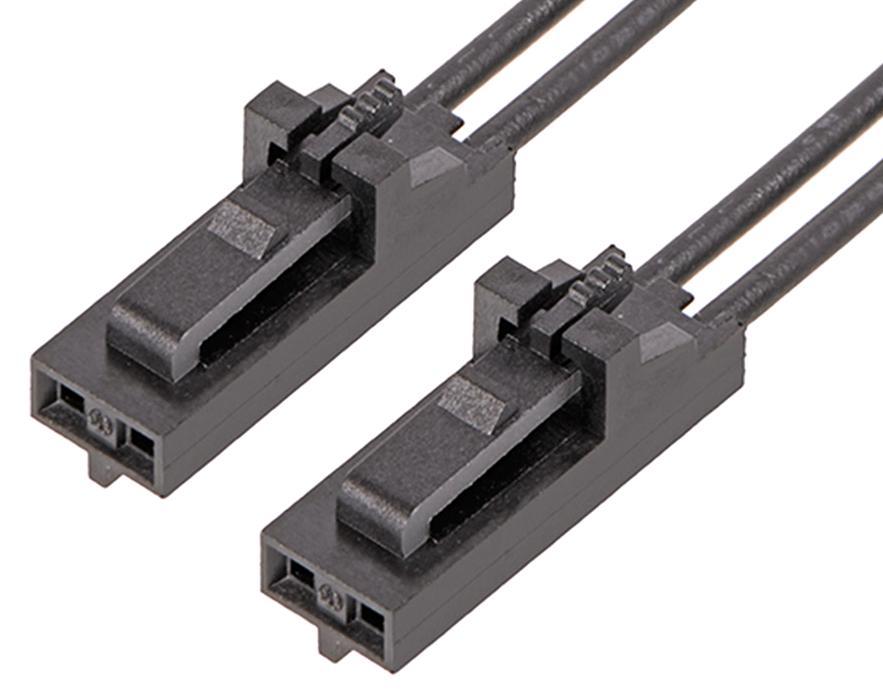

MOLEX 2162701021 Stackable Female-to-Female Cable Assembly
The off-the-shelf stackable linear female-to-female cable assembly offers high versatility for various industrial and consumer applications. It features a positive-lock mechanism for secure connections in high-vibration environments, along with terminal position assurance to prevent back-out. The low-profile housing allows stacking with options for vertical and right-angle headers, providing design flexibility. Rated for 600V AC/DC and 3A current, it’s built with a polyester alloy housing, phosphor bronze contacts with tin plating, and supports temperatures from -40°C to +105°C. Suitable for medical, automotive, data, and telecommunications devices, with up to 25 mating cycles.
MOLEX 2162701021 Stackable Female-to-Female Cable Assembly Specifications:
- Cable Length: 100.00mm
- Circuits: 2
- Color - Resin: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 1.773 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 25 mating cycles
- Certification: UL 11028, CSA LR19980
- RoHS & REACH Compliant
Buy the Molex 216270 U–2013 Reliable Cable Assemblies for Industrial Applications
Discover the reliable Molex Stackable Female-to-Female Cable Assembly, designed for versatile industrial and consumer use. With a secure positive-lock mechanism and up to 25 mating cycles, it suits high-vibration environments. Rated for 600V and 3A, it features a low-profile housing, diverse connection options including crimp and compression, and is made from durable polyester alloy with tin-plated phosphor bronze contacts. Ideal for medical, automotive, data, and telecommunications applications, it guarantees high performance and robust connectivity in a compact design.
Order your Molex Series216270 cable assembly today and ensure dependable, versatile connections for industrial, medical, or automotive projects.
Frequently Asked Questions
Where can I buy MOLEX 2162701021?
You can click on the BUY or RFQ button to purchase 2162701021 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701021?
You can download the 2162701021 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701021?
MOLEX
