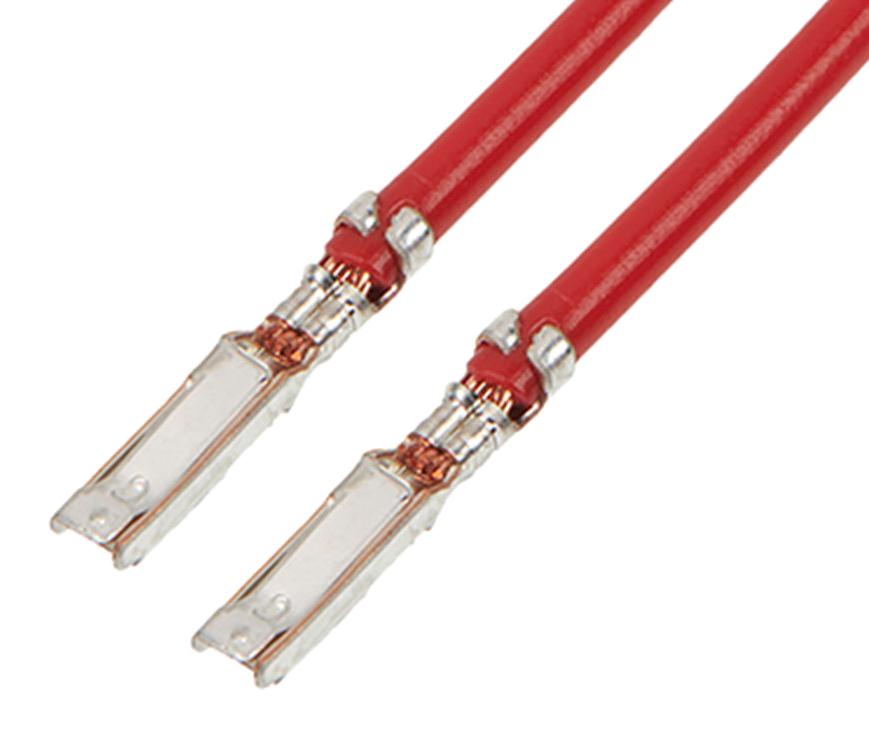

MOLEX 2178402123 Mizu-P25 Pre-Crimped Lead
The MOLEX 217840-2123 is a pre-crimped lead assembly specifically engineered for Mizu-P25 connectors, offering a convenient and reliable solution for wire-to-wire connections. This assembly boasts a tin plating for enhanced conductivity and corrosion resistance, a 225mm length to accommodate various application needs, and a 20 AWG wire gauge for robust signal transmission. Its red resin color provides easy identification and organization in complex wiring systems. Ideal for signal transmission in industrial automation, automotive, and consumer electronics applications.
MOLEX 2178402123 Mizu-P25 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mizu-P25
- crimp_terminals_overview: Off-the-Shelf Pre-Crimped Leads
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 1.680/g
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.40-1.90mm
- wire_size_awg: 20
- wire_cable_type: UL 10002
- voltage_maximum: 125V
- upc: 195842149830
- series: 217840
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- drawing_number: 2178401121-000
