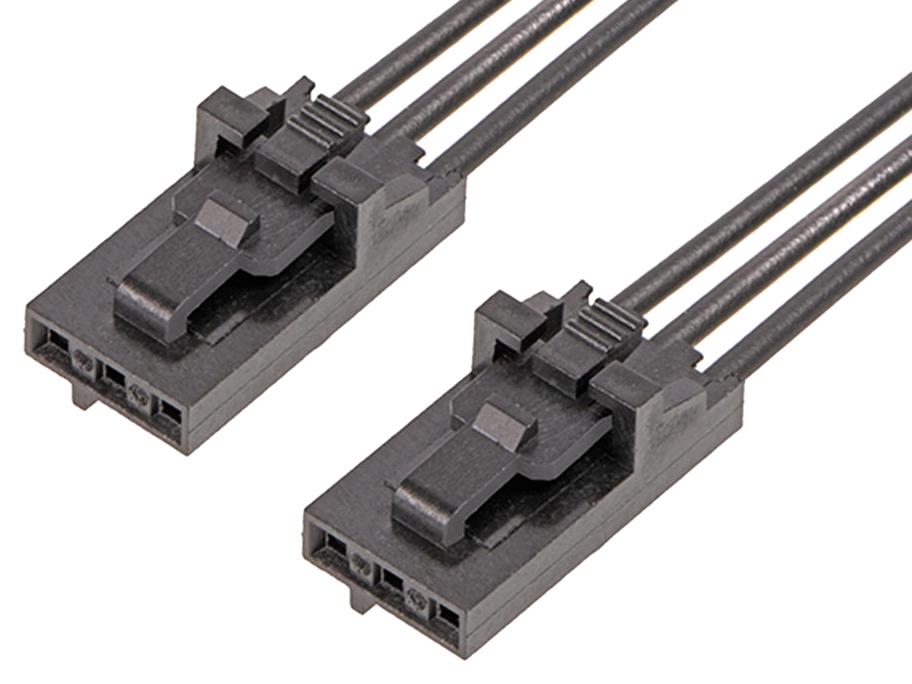

MOLEX 2162701033 Signal Cable Assembly
This off-the-shelf stackable linear positive lock cable assembly supports various connection types like crimp, FFC, and IDT, ideal for diverse applications including consumer electronics, industrial systems, and automotive. It features a positive-lock mechanism ensuring secure connections in high-vibration environments, a terminal position assurance lock, and split-peg PCB headers for alignment. The durable polyester alloy housing, tin-plated phosphor bronze contacts, and a temperature range from -40°C to +105°C make it reliable for production and prototyping. Rated up to 600V and 3A, it complies with UL and CSA standards, with a lifespan of 25 mating cycles.
MOLEX 2162701033 Signal Cable Assembly Specifications:
- Cable Length: 300.00mm
- Circuits: 3
- Color - Resin: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 5.435 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature: -40°C to +105°C
- Standards: UL 11028, CSA LR19980
- Certification: RoHS Compliant
- Environmental: Halogen-Free, China RoHS Compliant
Buy the Buy Molex Signal Cable Assembly Part Number 2162701033 Online
Purchase the Molex signal cable assembly online today to enhance your electronics with a reliable, secure, and versatile connection solution. This assembly features a positive lock for high-vibration environments, ensures compatibility with crimp, FFC, and IDT terminations, and is rated for up to 600V and 3A. Its durable polyester alloy housing, tin-plated contacts, and tight manufacturing tolerances make it suitable for consumer electronics, industrial systems, automotive, and data applications. Easily integrate this high-quality cable assembly into your designs for enhanced performance and reliability.
Order your Molex Series216270 2162701033 versatile cable assembly today and ensure reliable, secure connections for your electronic projects and manufacturing needs.
Frequently Asked Questions
Where can I buy MOLEX 2162701033?
You can click on the BUY or RFQ button to purchase 2162701033 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701033?
You can download the 2162701033 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701033?
MOLEX
