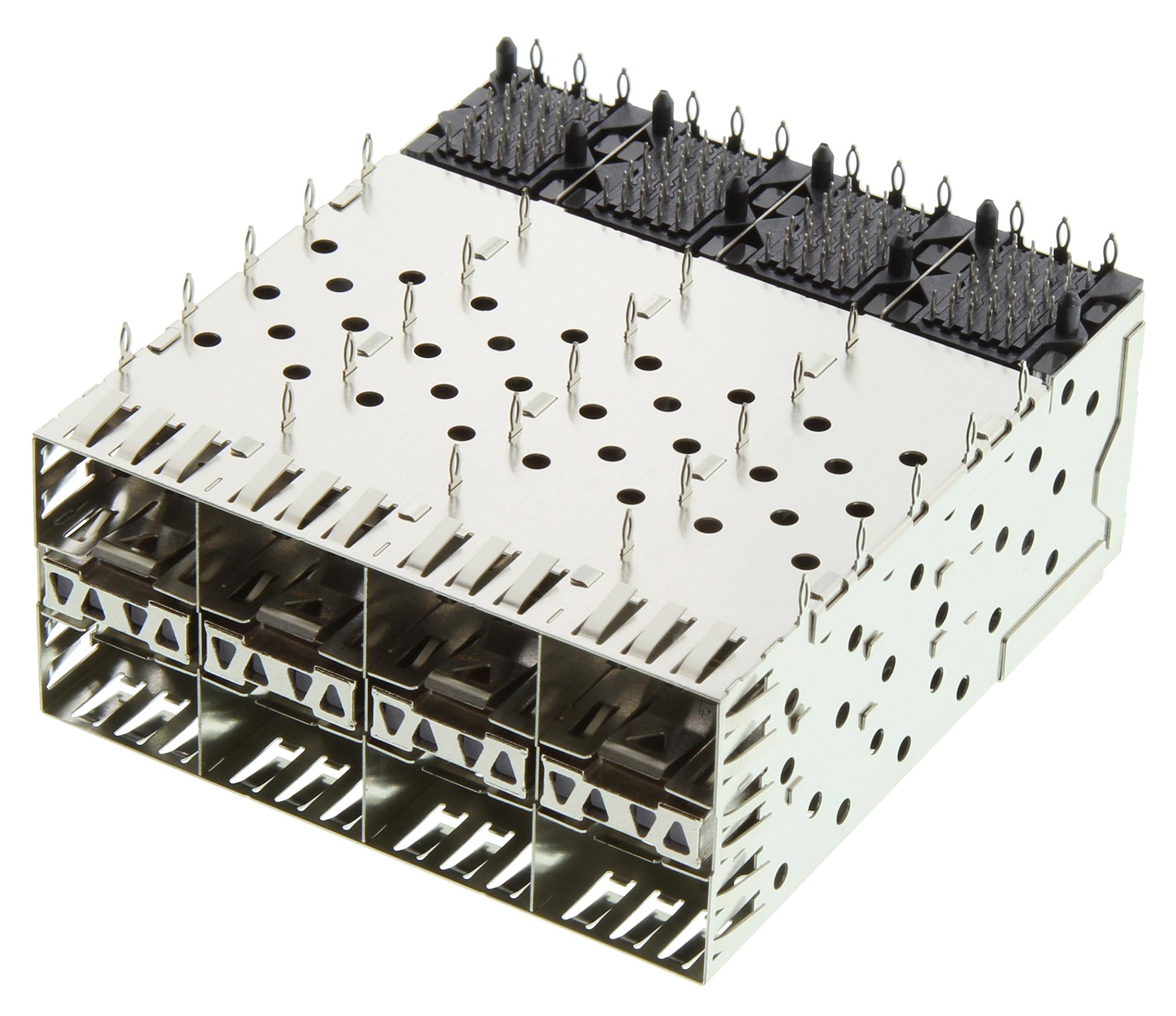

MOLEX 754505001 SFP+ Multi-Port Connector
This Small Form-factor Pluggable (SFP) stacked multi-port connector features 4 lightpipes with press-fit PC tails, supporting 160 circuits. Designed for high-performance applications, it complies with RoHS and UL standards, offering durability up to 200 mating cycles. Constructed with high-temperature thermoplastic and high-performance alloy, it is suitable for harsh environments with operating temperatures from -40°C to +85°C. The connector provides reliable connection for SFP and SFP+ modules, with shielded EMI fingers, rated for maximum 30V and 0.5A per contact, ensuring signal integrity and long-lasting performance.
MOLEX 754505001 SFP+ Multi-Port Connector Specifications:
- Circuits: 160
- Color: Black, Clear (Blue Tint)
- Flammability: 94V-0
- Material - Metal: High Performance Alloy (HPA)
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic, Polycarbonate
- Net Weight: 92.062 grams
- Orientation: Right Angle
- PC Tail Length: 3.05mm
- PCB Thickness - Recommended: 0.80mm
- Mating Interface Pitch: 2.40mm
- Operating Temperature Range: -40°C to +85°C
- Voltage - Maximum: 30V
- Current - Maximum per Contact: 0.5A
- Lock to Mating Part: Yes
- Shielded: Yes
- Waterproof / Dustproof: No
- Packaged as Tray
- Surface Mount Compatible: No
Buy the Buy Molex SFP+ Part Number 0754505001 Online
Purchase the Molex SFP+ Multi-Port Connector online today to ensure high-density, reliable, and durable interconnection solutions for your networking needs. This multi-port connector supports 160 circuits, features robust construction with high-temperature thermoplastic and high-performance alloy, and meets RoHS and UL standards for safety and environmental compliance. Its shielded design with EMI fingers ensures signal integrity, while the press-fit PC tails simplify assembly. Ideal for data centers and telecom equipment, this connector guarantees long-lasting, secure connections for demanding applications.
Get Molex 0754505001 today—built for high-density networking with reliable interconnect performance.
