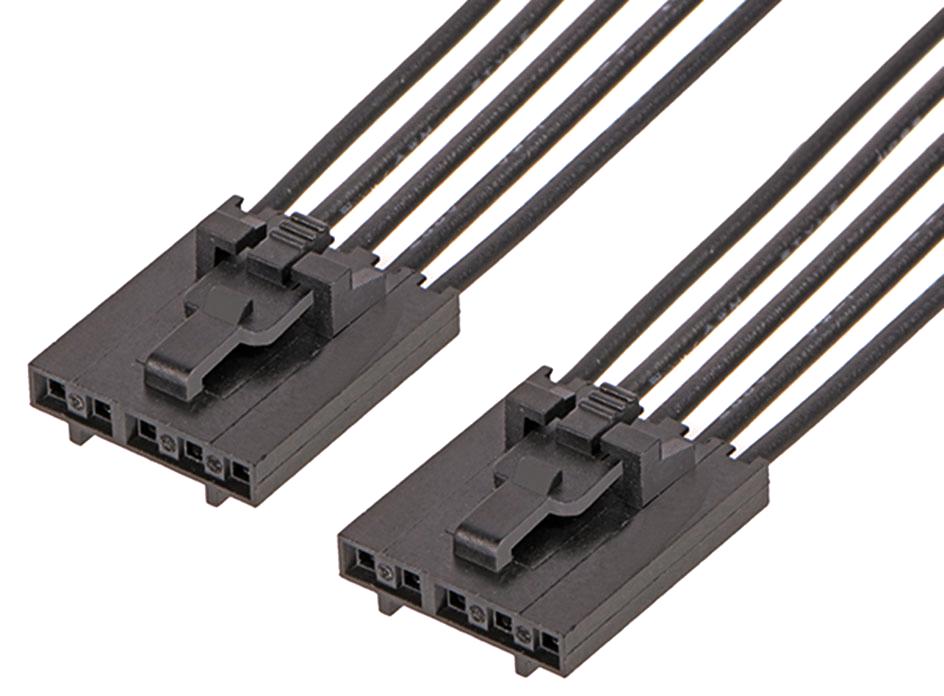

MOLEX 2162701051 Discreet Cable Assembly
This off-the-shelf stackable linear positive lock discrete cable assembly supports prototyping and mass production across various industries such as consumer, industrial, automotive, data, medical, and telecommunications. It offers options for crimp, FFC, and IDT terminations, with dual independent contacts for redundancy. The connector features a position assurance lock to prevent disengagement in high-vibration environments, a low-profile, stackable design with vertical and right-angle headers, UL and CSA certification, and supports up to 600V and 3A with a durable polyester alloy housing and tin plating. Operating temperatures range from -40°C to +105°C, rated for up to 25 mating cycles.
MOLEX 2162701051 Discreet Cable Assembly Specifications:
- Series: 216270
- Type: Discrete Wire Assembly
- Cable Length: 100.00mm
- Circuits (Loaded): 5
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: Not specified
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 25 mating cycles
- Certifications: UL Listed, CSA Certified
Buy the Molex 2162701051 – Reliable Discrete Cable Assembly for Industrial Applications
Purchase the Molex 2162701051 cable assembly online today—designed for reliable electrical connections in industrial, automotive, medical, and telecommunications applications. Its stackable, low-profile housing and dual contact points ensure enhanced performance and durability. The assembly supports up to 600V and 3A, with a polyester alloy housing, tin-plated contacts, and vibration-resistant design. Ideal for prototyping and mass production, it withstands harsh environments with operating temperatures from -40°C to +105°C and up to 25 mating cycles. Buy now for quality and dependability.
Get Molex 2162701051 today—built for precision, high vibration resistance, and long-lasting durability in industrial and medical environments.
Frequently Asked Questions
Where can I buy MOLEX 2162701051?
You can click on the BUY or RFQ button to purchase 2162701051 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701051?
You can download the 2162701051 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701051?
MOLEX
