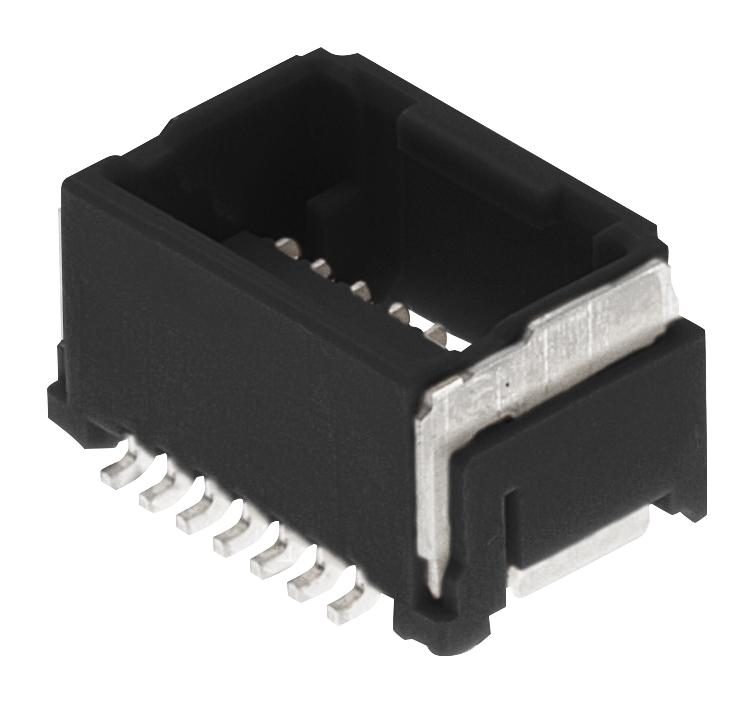

MOLEX 5054333071 Micro-Lock Plus Connector
The Micro-Lock PLUS Vertical Header is a durable wire-to-board connector system with a 1.25mm pitch, dual-row configuration, and tin-bismuth plating. Designed for signal applications, it supports up to 30 circuits with a maximum operating voltage of 50V AC/DC and a current of 1.5A per contact. Made from high-quality polyamide resin with brass metal contacts, it offers reliable mating, polarization, PCB retention, and a mating cycle durability of 30. Suitable for high-temperature environments up to +105°C, it is compatible with surface-mount technology and packaged in embossed tapes for automated assembly.
MOLEX 5054333071 Micro-Lock Plus Connector Specifications:
- Pitch - Mating Interface: 1.25mm
- Circuits (Max): 30
- Color - Resin: Black
- Material - Metal: Brass
- Material - Resin: Polyamide
- Material - Plating: Tin-Bismuth
- Temperature Range - Operating: -40°C to +105°C
- Current - Max per Contact: 1.5A
- Voltage - Max: 50V AC/DC
- Durability (mating cycles max): 30
- Orientation: Vertical
- PCB Retention: Yes
- Surface Mount Compatible (SMC): Yes
- Packaging Type: Embossed Tape on Reel
- Net Weight: 1598.046 mg
- Lock to Mating Part: Yes
- Guide to Mating Part: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
Buy the Molex Series 505433 Micro-Lock PLUS: 5054333071
Secure your electronic assemblies with the Micro-Lock Plus Connector, offering 30 circuits, a 1.25mm pitch, and tin-bismuth plated contacts. Its durable polyamide housing withstands high temperatures up to +105°C, ensuring reliable performance in demanding environments. Compatible with surface-mount technology, it features polarization, PCB retention, and a mating cycle life of 30. Designed for signal applications, this vertical header provides robust electrical contact with a maximum current of 1.5A per contact and voltage up to 50V AC/DC. Order online now for fast delivery and seamless integration.
Buy Molex 5054333071 now and experience unmatched reliability and high-quality signal contact performance in compact wire-to-board connectors.
