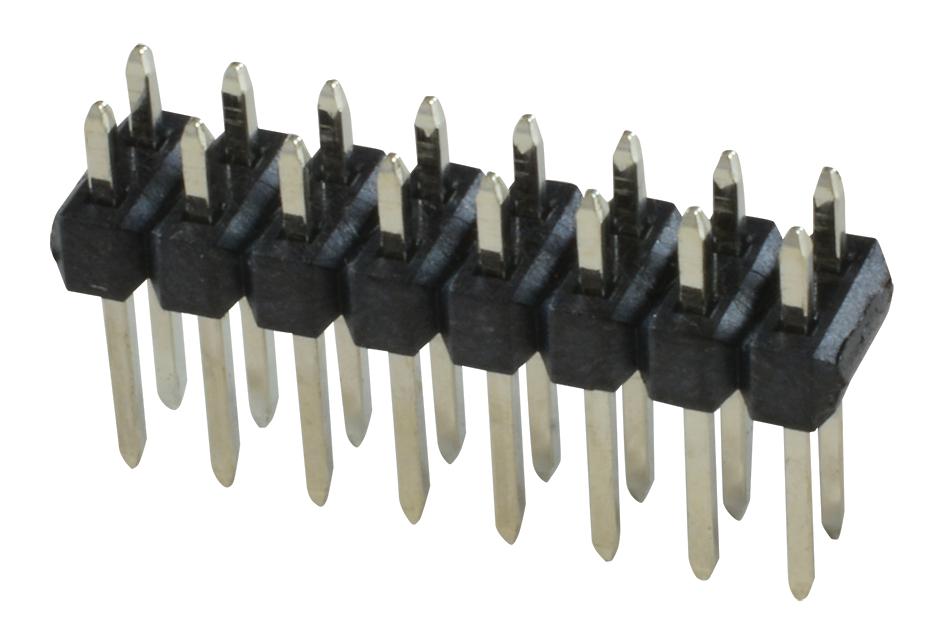

MOLEX 10897501 PCB Header Connector
The 2.54mm Pitch C-Grid Breakaway Header is a high-temperature, dual-row, vertical connector designed for reliable board-to-board connections. Featuring 50 circuits with tin plating for enhanced durability, it offers a PC tail length of 2.72mm and is suitable for applications requiring multiple mating cycles. Crafted from high-temperature thermoplastic with copper alloy contacts, it supports operating temperatures from -40°C to +105°C. This connector complies with RoHS, China RoHS, and REACH standards, making it ideal for various industrial electronic assemblies demanding secure and durable connections.
MOLEX 10897501 PCB Header Connector Specifications:
- Pitch: 2.54mm
- Number of Rows: 2
- Circuits (Loaded): 50
- Maximum Circuits: 50
- Color - Resin: Gray
- Durability: Up to 50 mating cycles
- Flammability: UL 94V-0
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 3.043 grams
- PC Tail Length: 2.72mm
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Through Hole
- Voltage - Maximum: 250V
- Current - Maximum per Contact: 3.0A
- RoHS: Compliant
- China RoHS: Green Image
- REACH SVHC: Not Contained
- UL/CSA Certification: Yes
Buy the Molex 0010897501 – Reliable PCB Connector for Industrial Applications
Enhance your electronic assemblies with the Molex PCB Header Connector featuring a 2.54mm pitch, 50 circuits, and high-temperature thermoplastic housing. Its durable tin-plated copper contacts ensure reliable connections for industrial applications requiring up to 50 mating cycles. With a compact dual-row vertical design and a PC tail length of 2.72mm, this connector maintains excellent electrical performance from -40°C to +105°C. RoHS compliant, UL/CSA certified, it’s ideal for cost-effective, high-quality PCB interconnections in demanding environments.
Buy Molex 0010897501 now and experience unmatched reliability and performance in industrial PCB connections, supporting high temperatures and durable operation.
Frequently Asked Questions
Where can I buy MOLEX 10897501?
You can click on the BUY or RFQ button to purchase 10897501 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 10897501?
You can download the 10897501 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 10897501?
MOLEX
