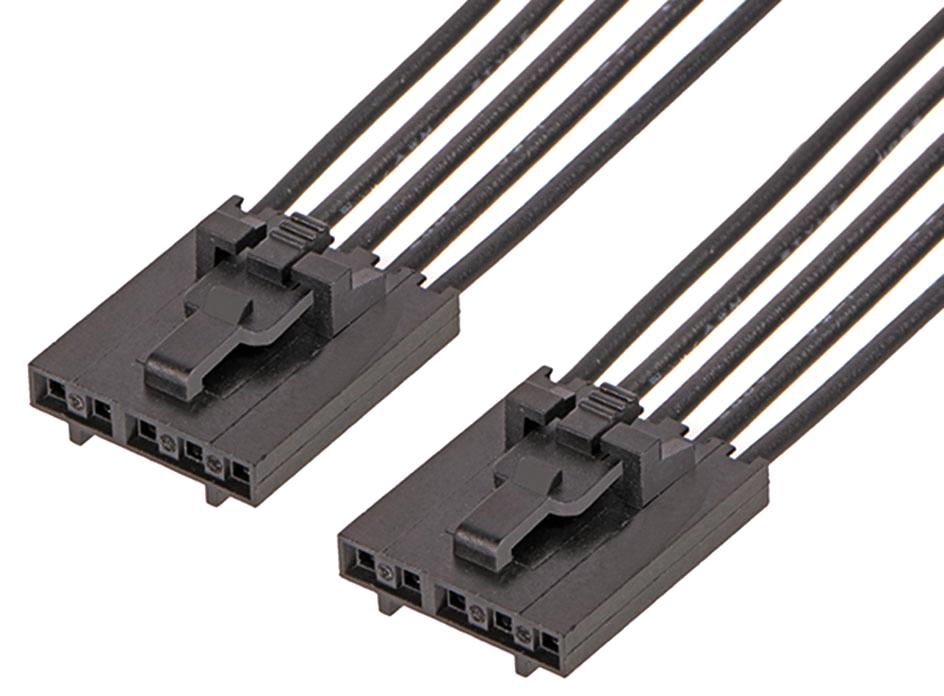

MOLEX 2162701054 Stackable Cable Assembly
The stackable linear female-to-female cable assembly is designed for versatile use in prototyping and production across consumer, industrial, automotive, data, medical, and telecom markets. It features a positive-lock mating interface, split-peg PCB headers for stable soldering, and a low-profile, stackable housing with vertical and right-angle headers for flexible design integration. Built with polyester alloy housing and phosphor bronze contacts with tin plating, it supports up to 600V AC/DC, 3A, with a temperature range from -40°C to +105°C. Durable for 25 mating cycles, it ensures reliable connections in harsh environments, compliant with UL and CSA standards.
MOLEX 2162701054 Stackable Cable Assembly Specifications:
- Connector Type: Female-to-Female
- Cable Length: 600.00mm
- Number of Circuits: 5
- Color - Resin: Black
- Connector Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Operating Voltage: 600V AC/DC
- Current per Contact: 3.0A
- Operating Temperature Range: -40°C to +105°C
- Mating Cycles: Up to 25
- Dimensions: Length 600mm, pitch 2.54mm, terminal max diameter 1.63mm
- Certifications: UL Listed, CSA Certified
- RoHS Compliant, Halogen-Free: No
- Assembly Configuration: Connector to Connector, Stackable
Buy the Molex Series 216270 Signal Cable: 2162701054
Order the Molex 2162701054 stackable cable assembly online for reliable, high-quality connections in diverse environments. Perfect for prototyping, industrial use, and high-vibration applications, its positive-lock interface ensures secure engagement. Made with durable materials like polyester alloy housing and tin-plated phosphor bronze contacts, it supports up to 600V and 3A currents. Its compact, versatile design includes vertical and right-angle headers, ensuring easy integration into complex systems. Choose Molex for trusted quality and long-lasting performance, all available at your fingertips online.
Get Molex 2162701054 today—built for secure connections, high vibration environments, and versatile industrial applications.
