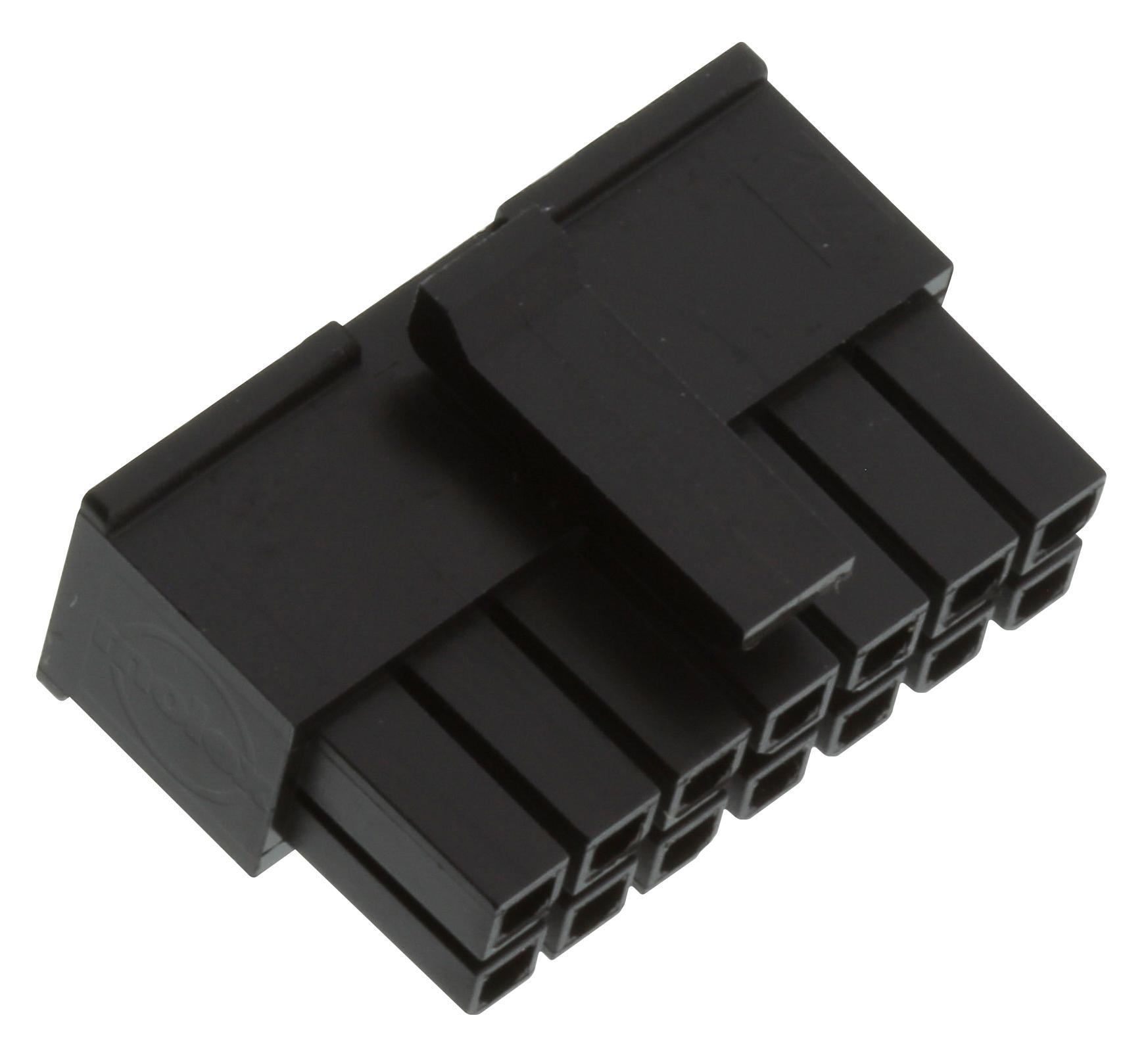

MOLEX 430251408 Micro-Fit 3.0 Receptacle Housing
The MOLEX 43025-1408 Micro-Fit 3.0 Receptacle Housing is a critical component in power and signal transmission systems. Designed for wire-to-board and wire-to-wire applications, this housing accommodates 14 circuits and is constructed from durable nylon resin. Its black color and UL 94V-0 flammability rating ensure both aesthetic appeal and safety. The housing is part of the Micro-Fit 3.0 Connector System, known for its robust design and ease of use. It is commonly used in automotive, industrial, and consumer electronics applications where reliable and secure connections are essential. The polarized design and keying features contribute to proper mating and prevent misconnections.
MOLEX 430251408 Micro-Fit 3.0 Receptacle Housing Specifications:
- Circuits (maximum): 14
- Color - Resin: Black
- Flammability: 94V-0
- Gender: Receptacle
- Glow-Wire Capable: No
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 1.238/g
- Number of Rows: 2
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 3.00mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- EU ELV Compliant: Yes
- EU RoHS: Compliant
- China RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Mates With: Micro-Fit 3.0 Plug Housings 43020, MicroFit 3.0 Headers 43045, Micro-Fit 3.0 Test Plug 44242
- Use With: Micro-Fit 3.0 Female Crimp Terminals 43030, 45773, Micro-Fit RMF Female Crimp Terminals 46235
- Lead-freeProcess Capability: N/A
Buy the 43025-1408 MOLEX Micro-Fit 3.0 Receptacle Housing | myMectronic
Purchase the MOLEX 43025-1408 Micro-Fit 3.0 Receptacle Housing securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 430251408?
You can click on the BUY or RFQ button to purchase 430251408 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430251408?
You can download the 430251408 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430251408?
MOLEX
