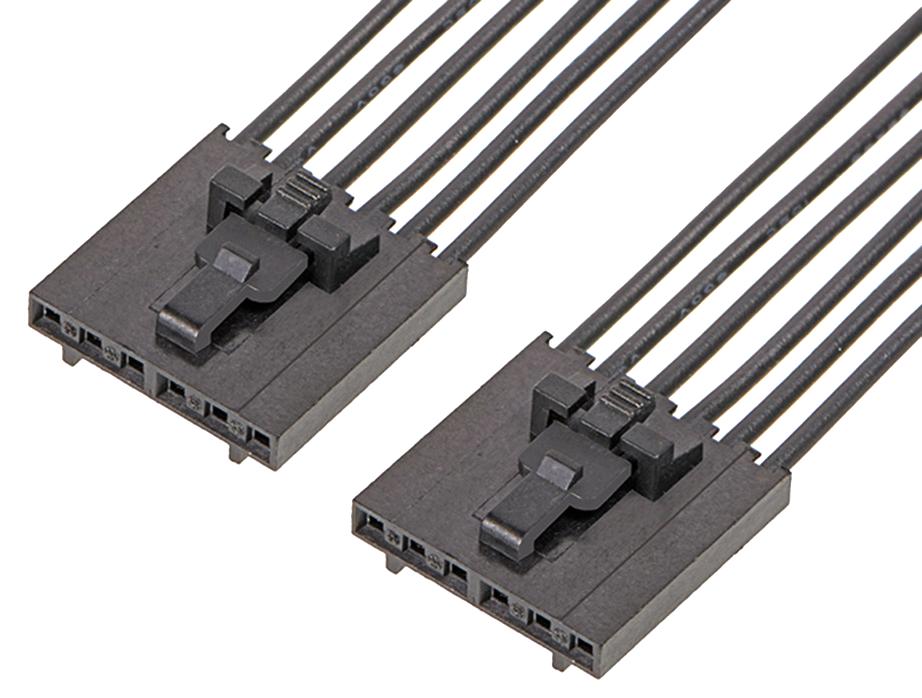

MOLEX 2162701063 Stackable Cable Assembly
This stackable linear positive lock cable assembly is suitable for prototyping and mass production, supporting crimp, FFC, and IDT terminations. It features dual contact points for reliable electrical performance and includes a connector position assurance lock for stability in high-vibration environments. Made with a durable polyester alloy housing and phosphor bronze contacts with tin plating, it supports voltages up to 600V AC/DC and currents up to 3A. Operating from -40°C to +105°C, it ensures up to 25 mating cycles, ideal for signal and wire-to-wire applications requiring versatile, dependable connections.
MOLEX 2162701063 Stackable Cable Assembly Specifications:
- Housing Material: Polyester alloy with low-profile, stackable design
- Contact Material: Phosphor bronze with tin plating and underplating
- Maximum Voltage: 600V AC/DC
- Maximum Current: 3A per contact
- Operating Temperature Range: -40°C to +105°C
- Mating Cycles: Up to 25
- Connector Type: Female-to-female, with split-peg PCB headers
- Locking Feature: Connector position assurance (CPA) lock
- Termination Styles Supported: Crimp, FFC, IDT
- Contact points: Two independent for redundancy
- Size and Dimensions: Supports various configurations with vertical and right-angle headers
- Application: Signal, wire-to-wire, prototyping, and mass production
Buy the Buy Molex Cable Assembly Part Number 2162701063 Online
Secure your electronic projects with Molex's reliable stackable cable assembly. Supported for high vibration environments, rated for 600V and 3A, its robust design ensures long-term durability. Easy to install with multiple termination options including crimp, FFC, and IDT. Operating from -40°C to +105°C, it offers up to 25 mating cycles with durable polyester alloy housing and phosphor bronze contacts with tin plating. Perfect for signal, wire-to-wire, and stackable applications across prototyping and mass production environments.
Order your Molex cable assembly 2162701063 today and enhance your projects with reliable, high-quality connections suitable for diverse electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 2162701063?
You can click on the BUY or RFQ button to purchase 2162701063 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701063?
You can download the 2162701063 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701063?
MOLEX
