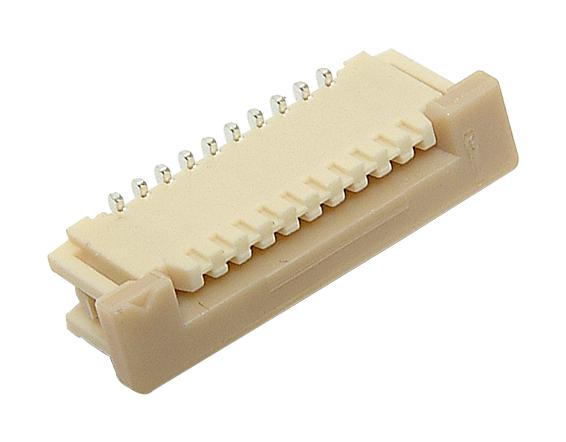

MOLEX 526101133 FFC-FPC Connector
The Molex Easy-On FFC-FPC Connector features a 1.00mm pitch, vertical slider design, 11 circuits, and a height of 5.75mm. It is designed for flexible flat cable and flexible printed circuit applications, offering reliable connections with tin-silver-bismuth plating and a durable mating cycle of 30 insertions. Suitable for surface-mount technology, this connector operates within a temperature range of -40°C to +85°C, and it supports a maximum current of 1.0A per contact, meeting RoHS and UL certifications for safety and compliance.
MOLEX 526101133 FFC-FPC Connector Specifications:
- Pitch: 1.00mm
- Number of Circuits: 11
- Height: 5.75mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Silver, Tin-Bismuth
- Material - Plating Termination: Silver, Tin-Bismuth
- Material - Resin: Nylon
- Durability: 30 mating cycles
- Operating Temperature Range: -40°C to +85°C
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V
- Flammability: 94V-0
- Packaging: Embossed Tape on Reel
- Mated Height: 5.75mm
- Surface Mount: Yes
- Color - Resin: Natural
- Orientation: Vertical
- PCB Mounting: Surface Mount
- Contact Position: N/A
- PCB Retention: None
Buy the Molex Series Slider FFC-FPC: 526101133
Purchase the Molex FFC-FPC Connector online today and enjoy a reliable, easy-on slide connection designed for flexible flat cables and printed circuits. This 1.00mm pitch connector offers high durability with 30 mating cycles, RoHS and UL certifications, and operates across a temperature range of -40°C to +85°C. Its surface-mount design ensures quick PCB assembly, and the tin-silver-bismuth plating enhances longevity. Ideal for applications requiring compact, secure, and certified connector solutions, this product is perfect for modern electronic device manufacturing.
Get Molex 526101133 today—built for reliable flexible circuit connections with easy-on slide design and RoHS compliance.
Frequently Asked Questions
Where can I buy MOLEX 526101133?
You can click on the BUY or RFQ button to purchase 526101133 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 526101133?
You can download the 526101133 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 526101133?
MOLEX
